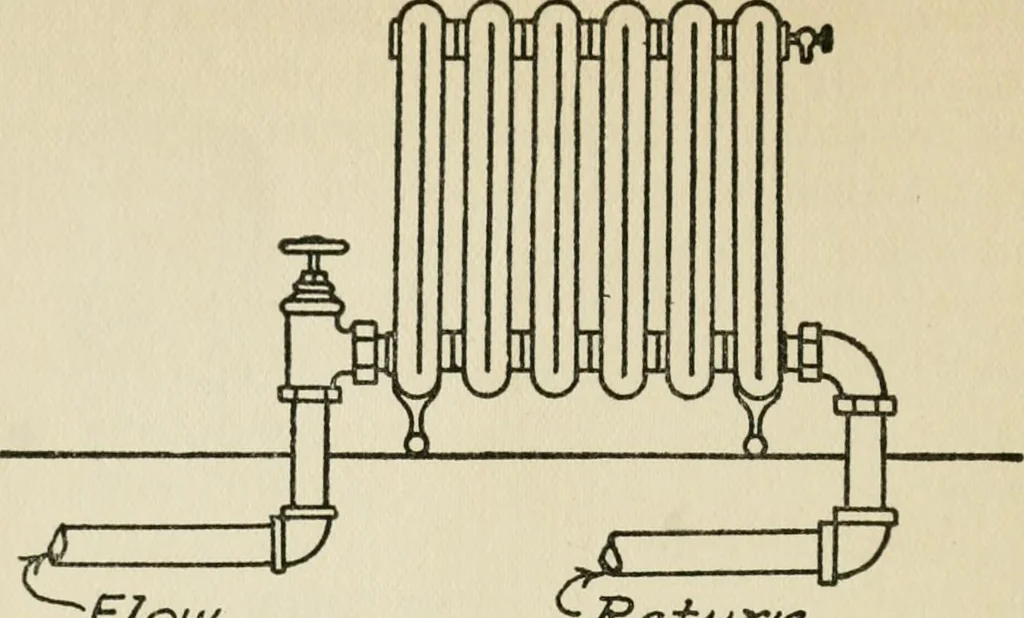

overflow Fig. 42, Automatic Expansion Tank Allowing Drawing-OfE of HotWater from the System. from the system without suffering the above dis-advantage, an automatic tank of the type shovv^nin Fig. 42 should be attached to the plant. Thewater supply to this tank is controlled by a ball-cock and… … ^FIOiA/ Jdeturn Fig. 43. Ordinary Method of Connecting a Hot-Water Radiator toFlow and Return Mains. from it, the action being quite similar to that ofthe ordinary closet tank. No water-gauge is re-quired on a tank of this character; and as thetop is open, a vent is not necessary. ■jpjpjrYV\?i…
