Mechanics of the household; a course of study devoted to domestic machinery and household mechanical appliances (1918)
Keene, E. S. (Edward Spencer), b. 1864 · New York, McGraw-Hill book company, inc.; · leaf 49

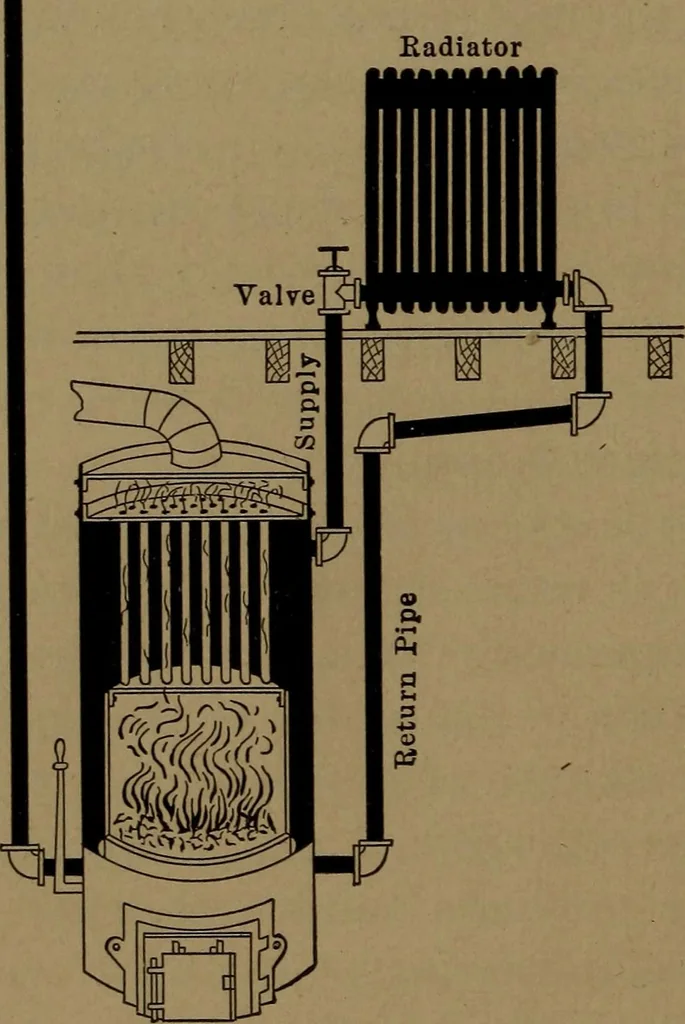

e boilers aremade of cast iron and are constructed in sections, the same asthe steam boiler shown in Fig. 16. Manufacturers sell a singlestyle for either steam or hot-water heating. The boiler in Fig.32 is cylindrical in form. It is made of wrought iron and con-tains a large number of vertical… … Fig. 32.—Diagram of a simple formof hot-water heating plant. THE HOT-WATER HEATING PLANT 39 radiator is really a part of the same body of water, the heatedportion rises through the supply pipe to the top of the radiator.As the hot water rises in the radiator, it displaces an equal amountof cold…
Heating · Lighting · Plumbing
