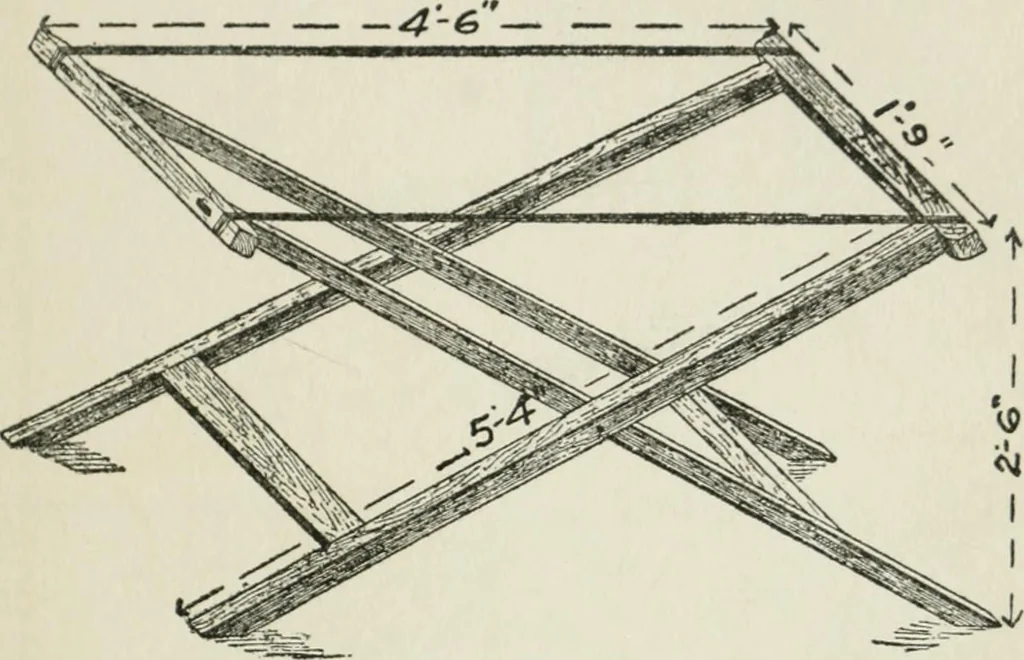

i4l ♦I I • I ♦I I • I 141♦I I • I♦I «[♦I ♦I I « * NH M OmO OQHO PAINTING AND DECORATING 289 trestles are available. Fig. 63 shows a veryhandy form of trestle, which should be madeof stuff about IY2 ill- square, except the lowerrails, which, if made broader, as shown, w411greatly strengthen the… … Fig. 63. Handy Form of Trestle. be made of 2-in. by 1-in. stuff, and mortised-and-tenoned together as indicated. Fig. 64, b, is anelevation and edge view of part of another styleof trestle; Fig. 65, a, is a general view of thecomplete trestle; the trestle should be made ofabout 1%-in. by %-in.…
