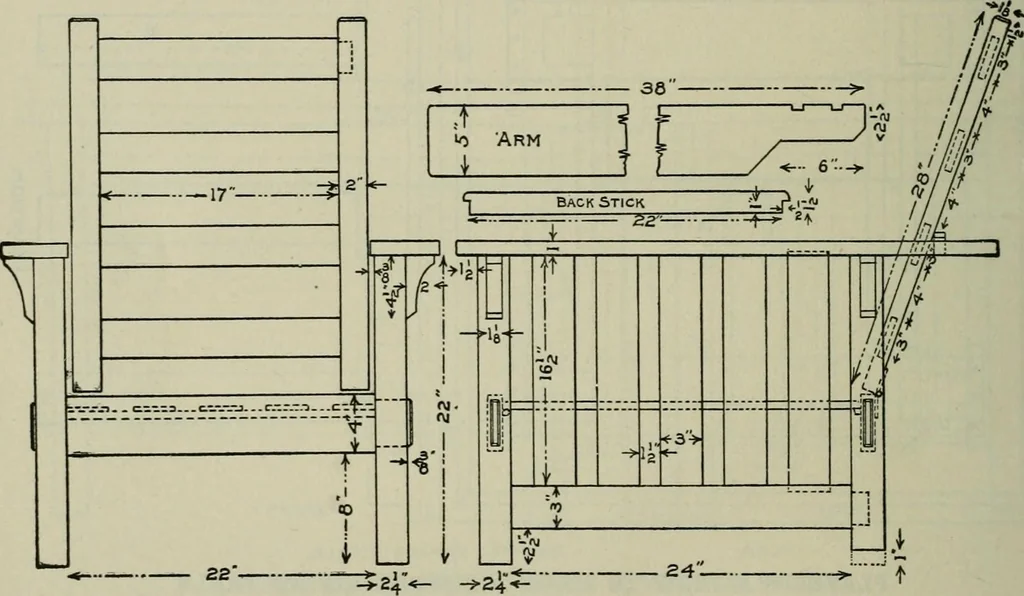

4 by 2 by 26 inches, Front and back rails, 2 pieces, 1% by 6% by 25 S-4-S. inches, S-2-S. Back horizontals, 3 pieces, % by 2% by 20 Side rails, 2 pieces, iy8 by 6*4 by 27 inches, inches, S-4-S. S-2-S. Back horizontal, 1 piece, % by 4% by 20 inches, Side rails, 2 pieces, % by 2 by 27 inches, S-4-S.… … PLATE 141 A—HOW TO MAKE A MORRIS CHAIR Material Required Posts, 4 pieces, 214 by 2y4 by 22y2 inches, S-4-S. Front and back rails, 2 pieces, 1 by 4 by 28inches, S-4-S. Side rails, 2 pieces, 1 by 3 by 27 inches, S-4-S. Side slats, 10 pieces, y2 by 3 by 17y> inches,S-4-S. Arms, 2 pieces, 1 by 5 by…
