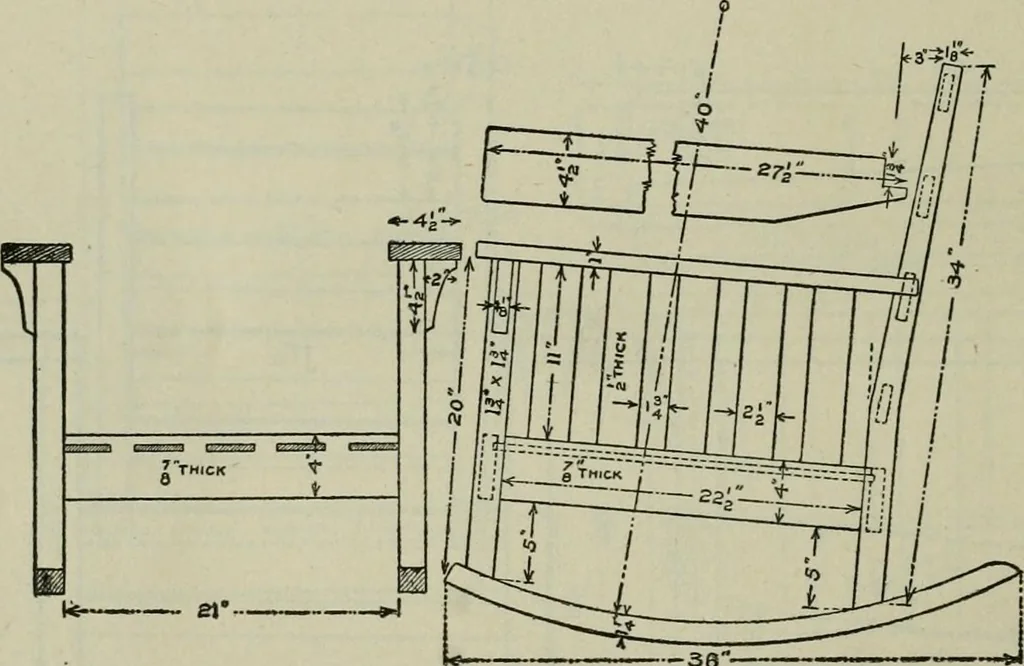

iece, % by 4 by 22 inches, S-4-S. Back slats, 5 pieces, % by 2% by 30% inches,S-4-S. Brackets, 2 pieces, 1*4 by 2% by 4i/2 inches,S-2-S. Arm supports, 2 pieces, % by 4 by 16 inches,S-4-S. Arms, 2 pieces, l1^ by 514 by 27i/2 inches, S-2-S. Front rail, 1 piece, % by 5y2 by 25 inches, S-4-S. Side… … — 38 i i V g*TMICK» J ^ 131 □ PLATE 143 A—HOW TO MAKE A MISSION ROCKER Material Required Front posts, 2 pieces, 1% by 1% by 21 inches,S-4-S. Back posts, 1 piece, 1% by 6 by 35 inches, S-2-S. Front rail, 1 piece, % by 4 by 23 inches, S-4-S. Back rail, 1 piece, % by 4 by 22 inches, S-4-S. Back rails,…
