Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 157

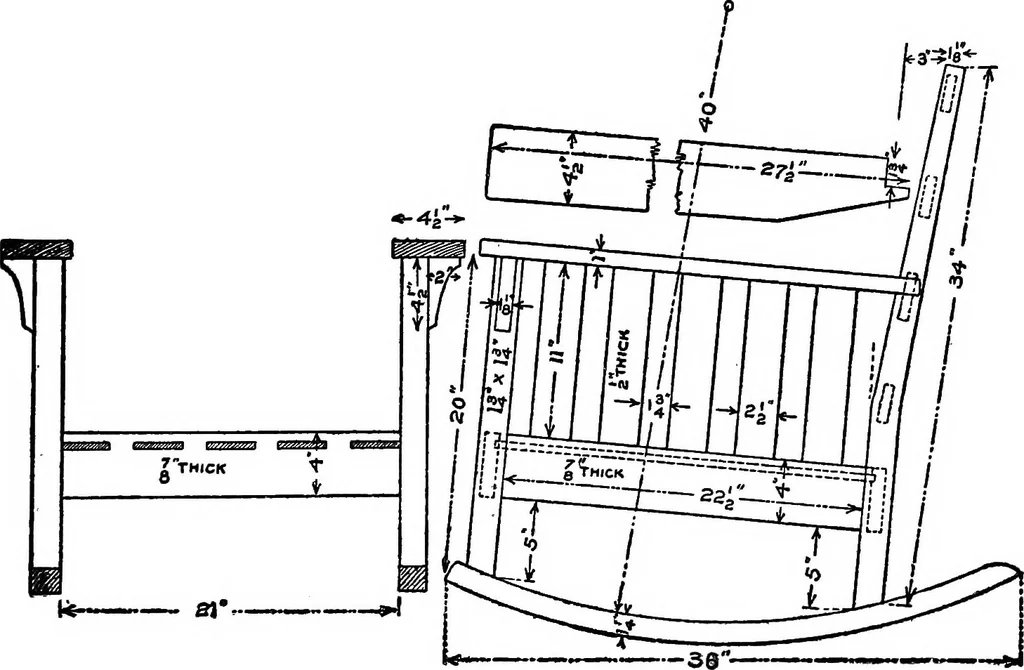

il, 1 piece, % by 4 by 22 inches, S-4-S. Back slats, 5 pieces, % by 2^ by 30% inches,S-4-S. Brackets, 2 pieces, 1^ by 2% by 4i^ inches,S-2-S. Arm supports, 2 pieces, % by 4 by 16 inches,S-4-S. Arms, 2 pieces, l^^ by 5% by 271^ inches, S-2-S. Front rail, 1 piece, % by 5i^ by 25 inches, S-4-S. Side… … „; CI L. PLATE 143 A—HOW TO MAKE A MISSION ROCKER Material Bequired Front posts, 2 pieces, 1% by 1% by 21 inches,S-4-S. Back posts, 1 piece, 1% by 6 by 35 inches, S-2-S. Front rail, 1 piece, % by 4 by 23 inches, S-4-S. Back rail, 1 piece, % l>y 4 by 22 inches, S-4-S. Back rails, 4 pieces, % by…
