Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 187

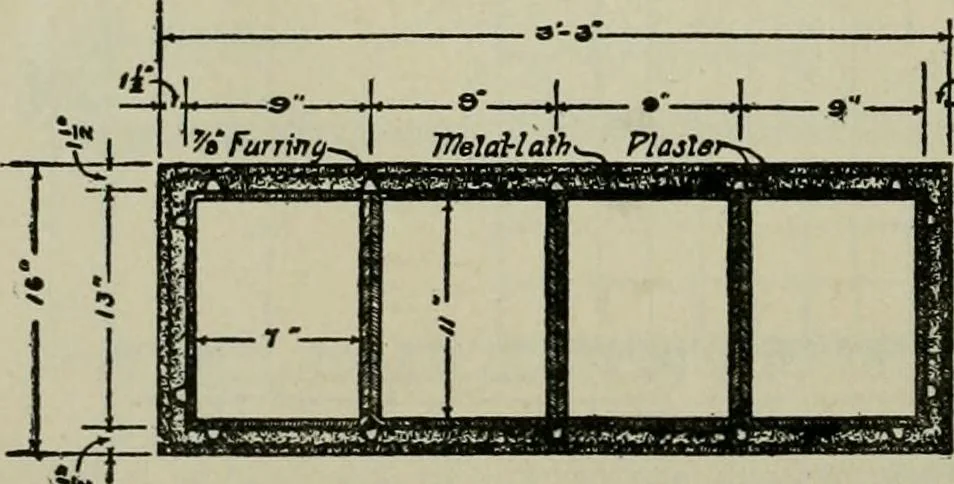

WKI4HTJ -3i-iD£ Doon I ra/iMZ Wall- Plan ARRANGEMENT FOR DUMB WAITERS Hand elevators, or dumb waiters, are of variouspatterns or designs; yet, in general the idea is thesame in all and the drawings herewith will showthe methods of finishing the elevator shafting, ar-ranging the sliding doors, etc.… … CHIMNEY OF FLUE LINING AND STUCCO Terra Cotta flue lining is laid in cement mor-tar and the outside surfaces covered with metallath furred out with metal furring. To this lathis applied a heavy coat of cement mortar,—onepart cement, one-half part lime, five parts sand.Two or three coats are applied…
Building · Architecture
