Radford's portfolio of details of building construction : a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale ... (1911)
Radford, William A., 1865-, Johnson, Bernard L, Rawson, Charles P · Chicago : The Radford Architectural Company · leaf 71

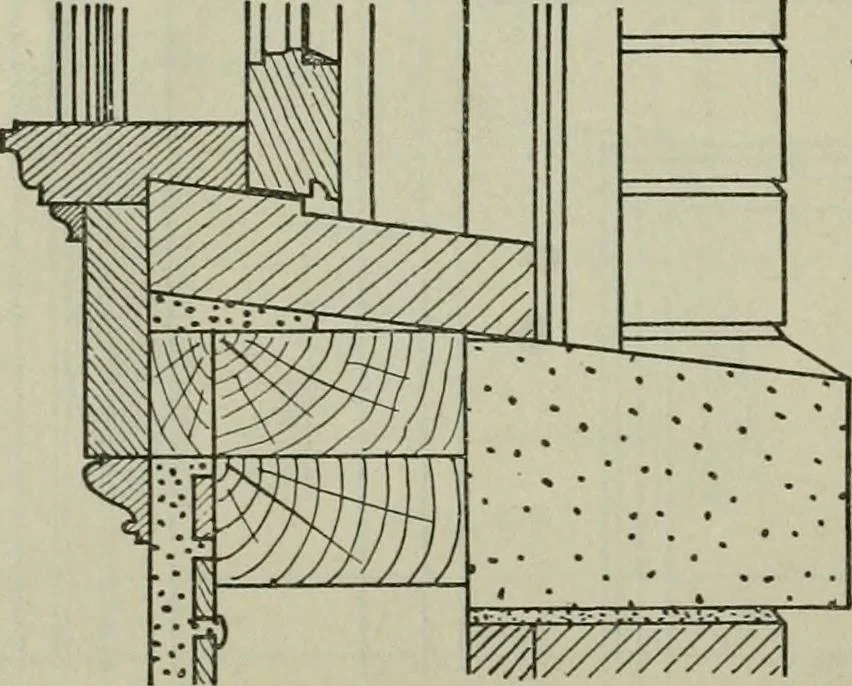

FIG.107! … FK3.108. >^^NT PKS.llO. PIRATE; XXIV. PLATE 59—DOUBLE HUNG WINDOW IN BRICK-VENEER WALL The wall is constructed of 2 by 4 studs, doubled brick wall is tied to the frame work every fiveat openings, plastered on the inside, sheathed courses and opposite every stud. Fig. 106, see-diagonally on the…
