Cyclopedia of architecture, carpentry, and building; a general reference work .. (1912)
American School (Lansing, Ill.) · Chicago, American school of correspondence · leaf 303

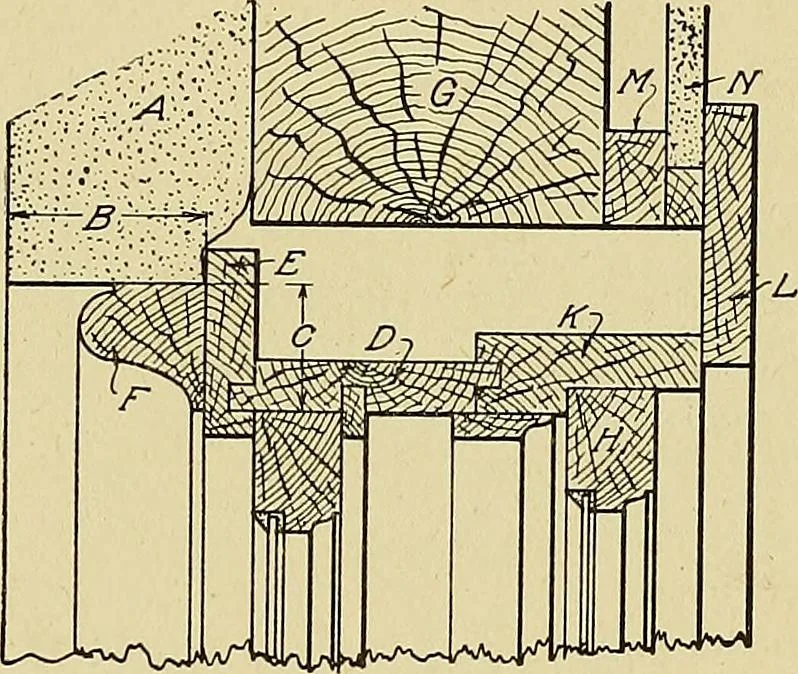

rick wall. At A is the masonry lintelwhich covers the masonry opening. It is usually of stone. Thedistance B is the same as the distance B in Fig. 337 and the distanceC is also the same as the corresponding distance in Fig. 337. D isthe yoke, the same as for a window in a frame wall, with the… … Fig. 338. Section through Head of Double-Hung Window 247 236 CARPENTRY 337, with the piece K arranged to receive it and also to receive theedge of the inside architrave L. M is the furring on the masonrywall, and N is the lathing and plastering, the plastering being cov-ered by the architrave L.…
Architecture · Building
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
