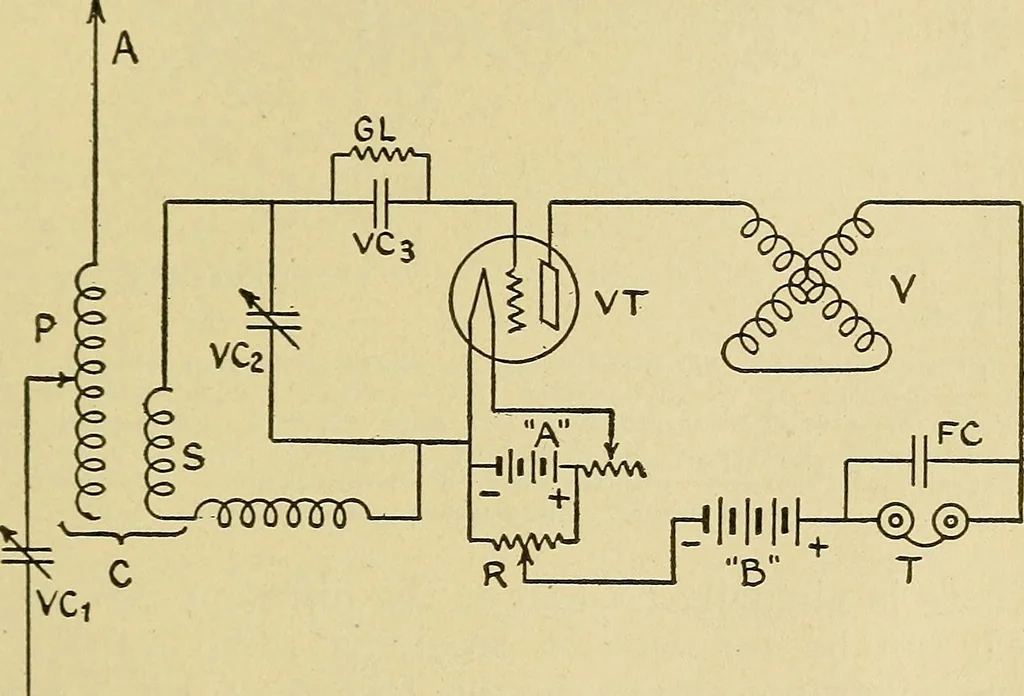

erative arrangement is tobe preferred. Two other methods in general use for regenerativereception are shown in the accompanying diagrams. Itwill be noted that instead of a tickler coil, use is madeof a variometer in the plate circuit. This variometerserves to tune and feed back into the grid the… … itIIi (3 still another method of regenerative operation: A—antenna;P—primary; S—secondary, of vario-coupler C; VCl—variablecondenser in antenna-ground circuit; VC2—variable con-denser; VC3—variable condenser used as grid condenser;GLr—grid leak; A—filament battery; VT—vacuum tubedetector; V—plate…
