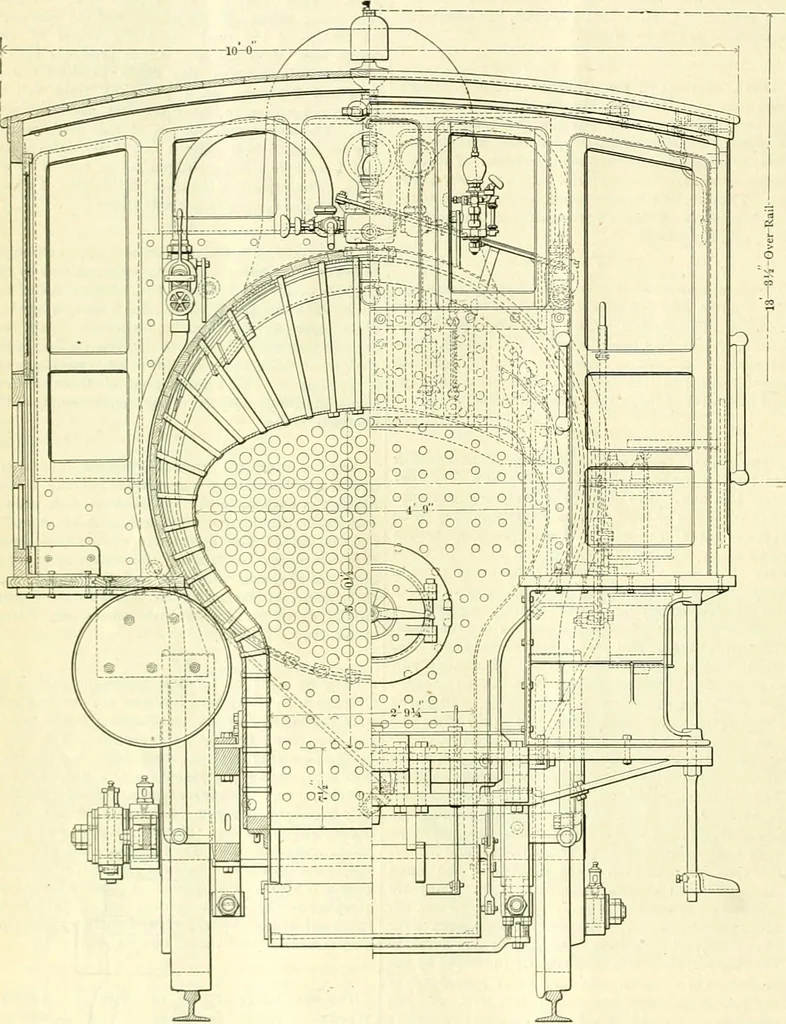

the latter is carried to an objectionable height. Itis very sure, however, that the loss of heating sur-face in the tubes is not so great an objection as asmall steam space which would be the result ofcarrying the crown sheets higher than usual. The engine frame is in three pieces, one largeforging… … HEA-\-Y CONSOLIDATION LOCOMOTIVE,order to allow for the effects of flanging. The fire-box is placed between the frames and above the rearaxle, the fire-box ring being inclined from that axleforward, and horizontal from that point to the backof the boiler. The crown is supported by radial staysI in.…
