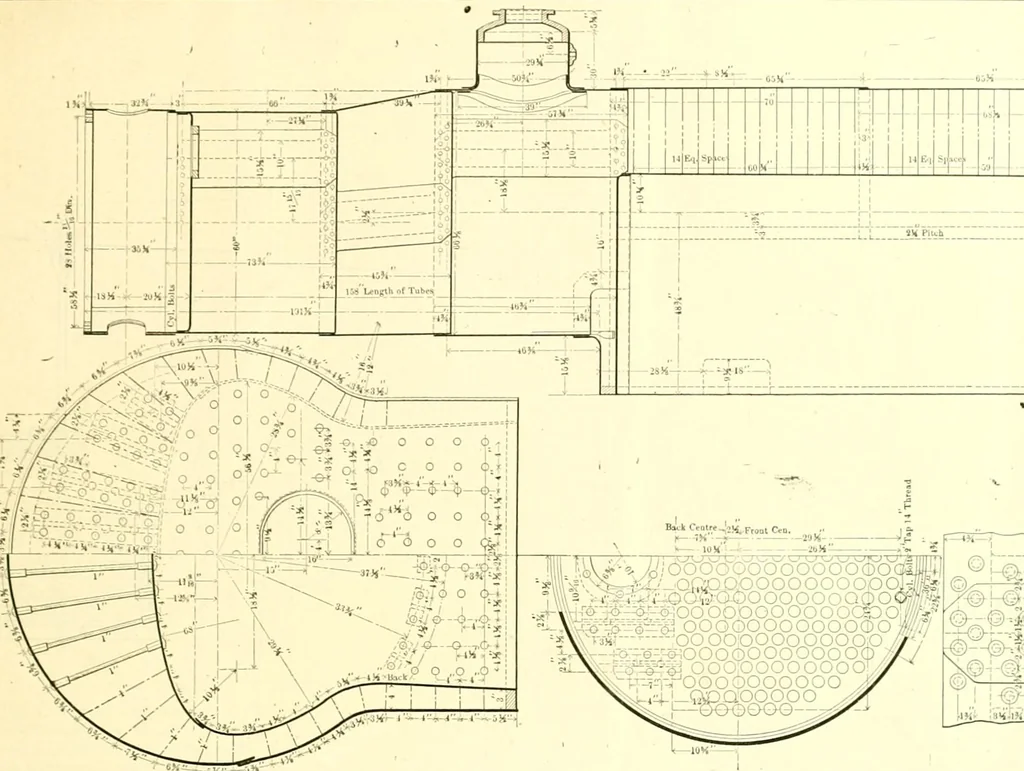

s construction tends to cause free steaming,for the radial stays give a more unobstructed crownsheet than when crown bars are used and the thirdcourse of the boiler being the same diameter as thewagon top makes the steam space larger than usual.The position of the dome is such that the steam isnot… … -€r^ Diiimit Thi.-ki Water space, sides and l>ack 3 in. Water spacr*. Ii-ont 4 in. Grate cttuipany^ stylo (8ee Master Mechanic for Feb.) Steam pressure 160 lbs. Heating surface, lubes, (about) 1,884 sq. ft. Locomotive Slide Valves. Early valves were of the slide pattern (plain D)and had hook…
