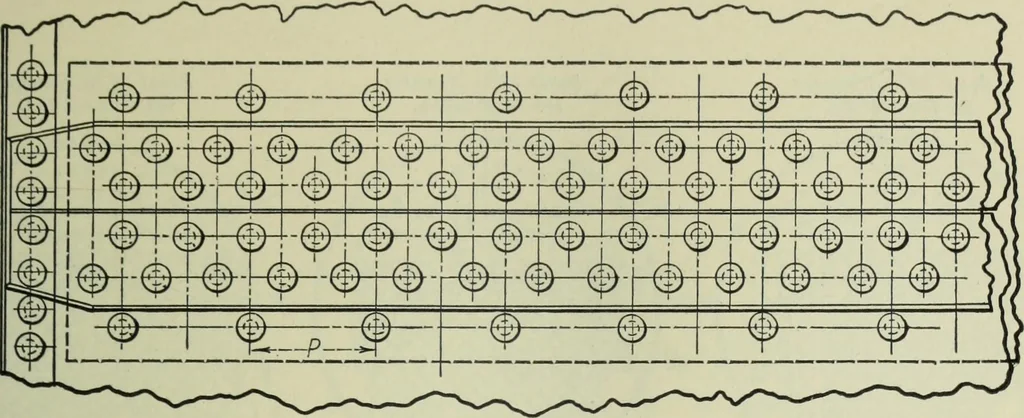

375 X 95,000 4- 0.875 X 0.3125 X 95,000 = 88,320. G = 2 X 0.875 X 0.375 X 95,000 + 1 X 42,000 X 0.6013 = 87,599. 82,500 (B)100.547(A) 0.820 = efficiency of joint. 78. Example. Butt and double strap joint, triple-riveted.A = strength of solid plate = p Xt X T.S. B = strength of plate between rivet… … Fig. 38. Butt and Double Strap Joint, Triple-Riveted. D = strength of plate between rivet holes in the second row, plus the shearing strength of one rivet in single shear in the outer row = (p — 2d) t X T.S. + n X s X a.E = strength of plate between rivet holes in the second row, plus the crushing…
