Recent cotton mill construction and engineering (1894)
Nasmith, Joseph · London : J. Heywood · leaf 189

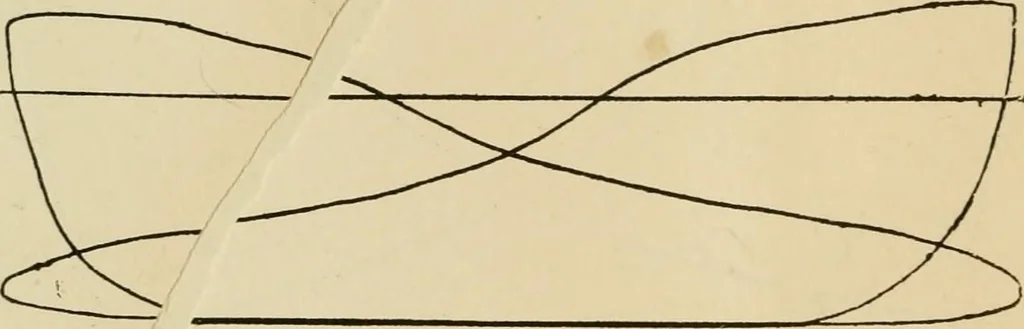

l^he cylinders areinverted, the high and interme^te pressures beingoutside, and the low pressure^ the middle. Thehigh pressure cylinder is !»• diameter, the inter-mediate 29in., and the lowessure 46in., the strokein each case being 4ft. -he cylinder ratios arethus—high to intermedin, 1 : 2-23… … Fig. 72. alio ig for the variation in the design, similarto xt of the preceding example, and does notr :e further comment, except that the cylin-3 are not jacketed. Knowles supplementaryv^ernor is added to the engine, which enables,n accurate and absolute control to be attainedover the steam…
Textile factories -- Design and construction · Cotton manufacture · Cotton machinery
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
