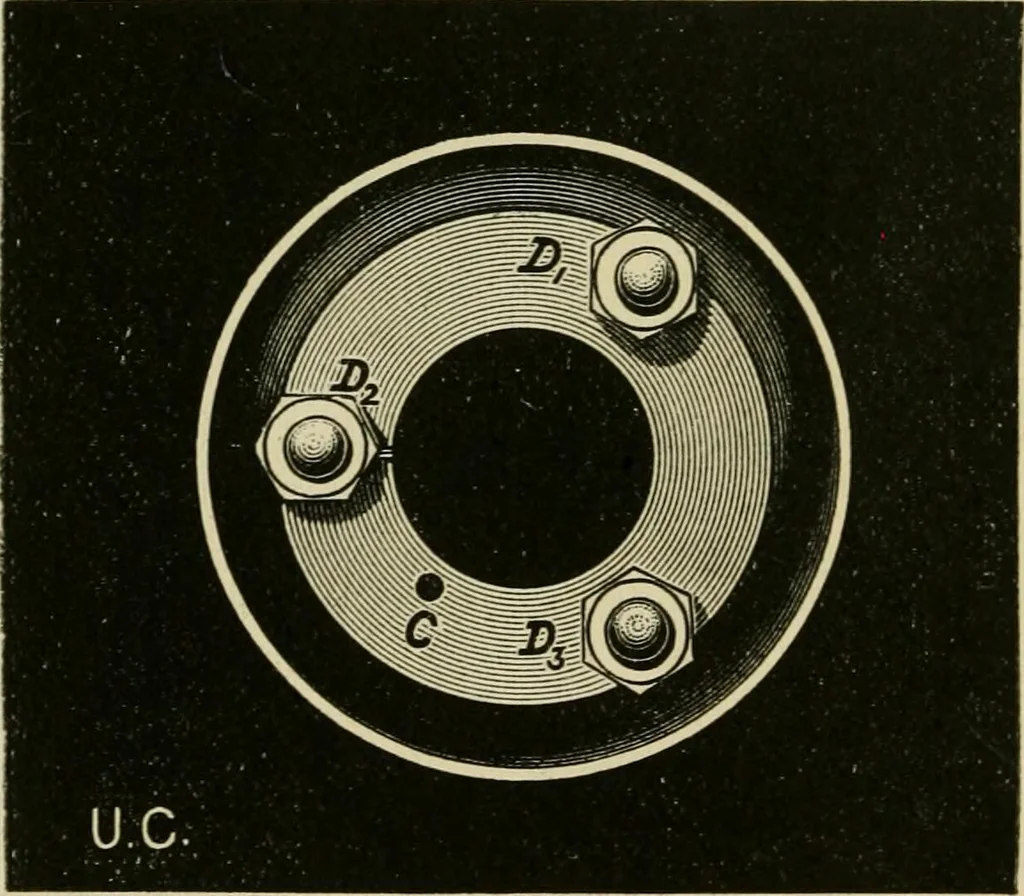

m of bolt recess 3 d. The rule as given byMolesworth is «i = diameter shaft, D = diameter ofboss, F = diameter of flange, I = thickness of flange,L = length of boss, Id = d + J^ d, F = 3 d + 2,l = -Z d+i, L = c?+1. The bolts in this formof coupling are of c urse in shear, and they maybe made a… … Fig. 124. 269 turned on a special mandrel. Round the inside ofthe shell and the outside of the cones three groovesequidistant from one another are formed, one ofthose in the cones being cut right through. Threebolts are passed through the coupling from end toend, and by screwing them up the two…
