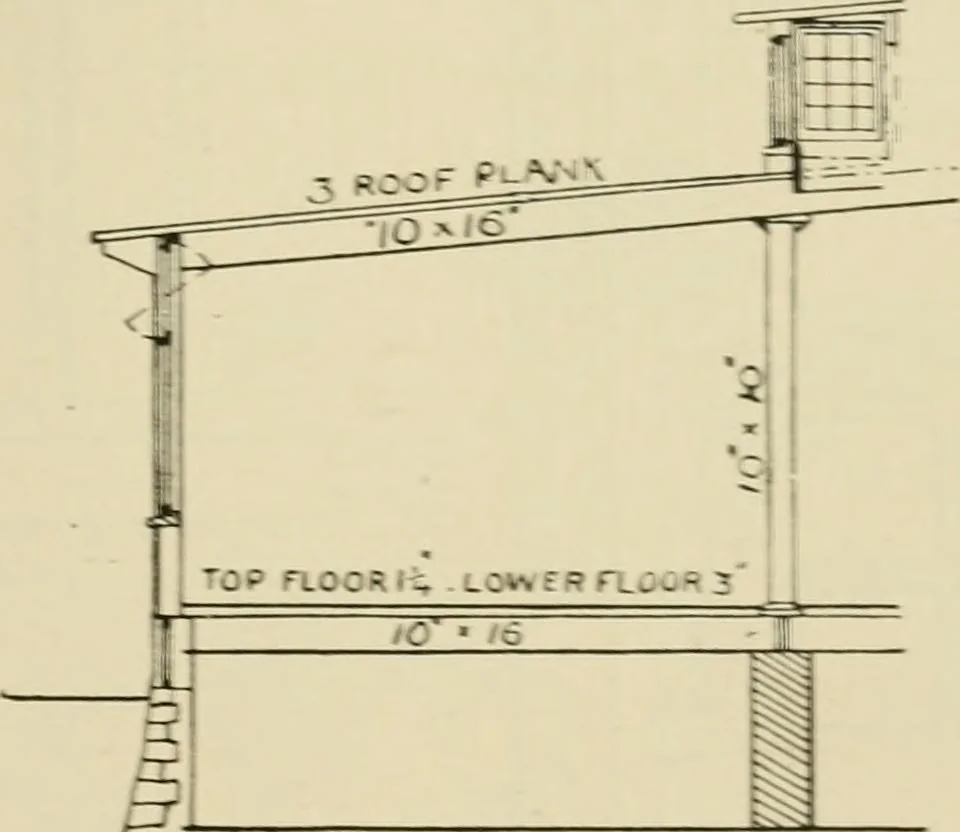

an iron platefixed on the topof abrick pillar in the basement, 24:m.by 16in. As shown, the ends of the floor beams areangled and rest upon the brickwork. The windowframes are also illustrated in detail. They goright up to the roof, and are of the EngHsh type,much resembling the window shown in Fig.… … Fic-. 17. window posts rest upon iron caps or plates anchoredin the wall. The window posts are lOin. square andare placed between the windows, and by means ofears, shown in dotted lines in the detailed drawings,the posts can be secured to the base plates. Theposts are bored through the centre with…
