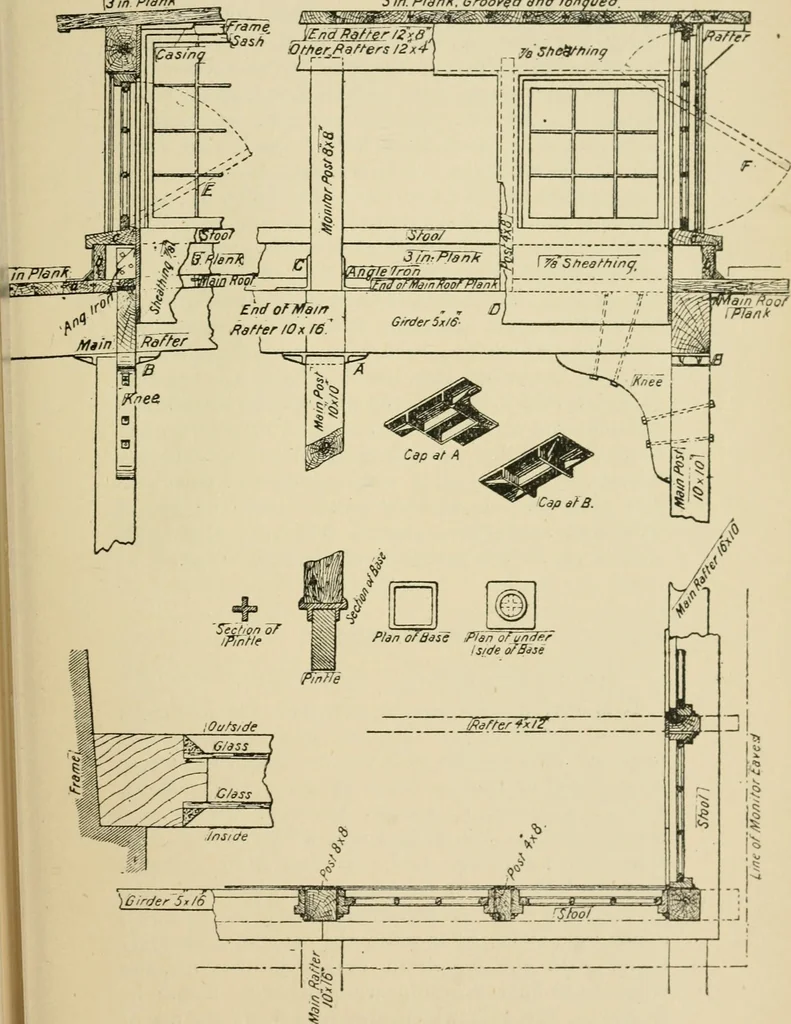

Fig. 18. \3in P/anM 3in~PlanR~, Grooyed andTTbnguec/ … Fig. 19. 46 the rafters of the monitor. The eud rafters arer2in. by 8iiL, and the others 12in. by 4in., andcarry the roof timber. The ends of the raftersproject so as to permit the roof to be carried oatfor weathering purposes. Upon the rafters a plank4Jin. deep by 3iu. thick is secured, on which…
