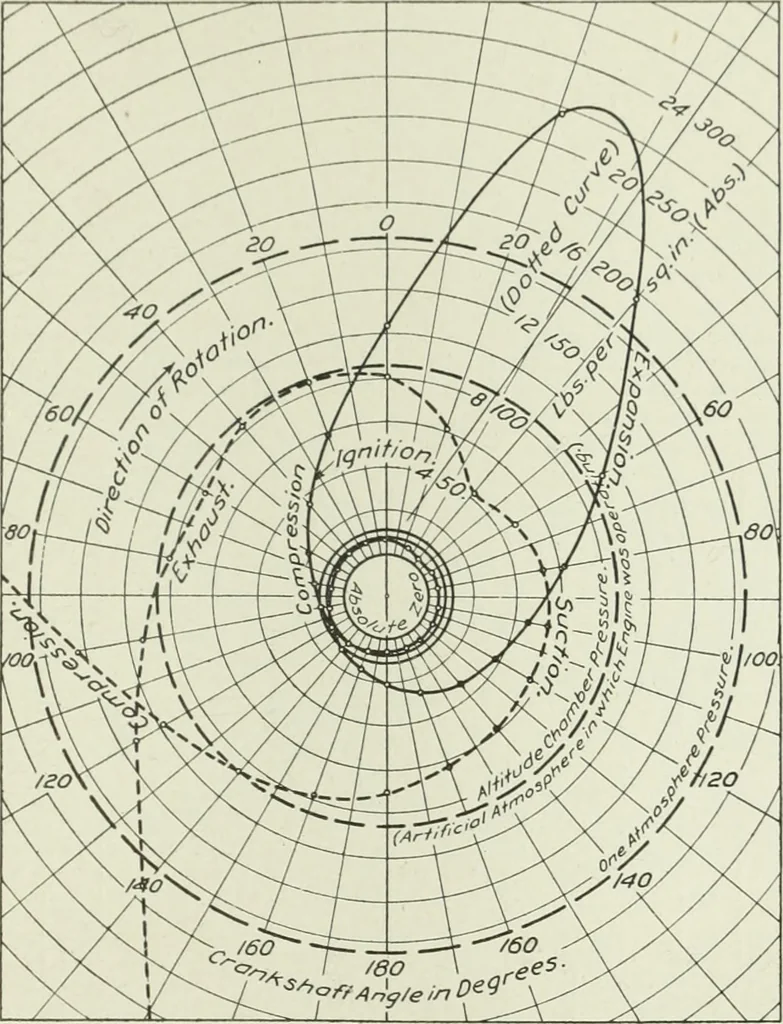

an be transfornied easily to pressure time or pressure volume, as desired. SPECIMEN INDICATOR DIAGRAMS. Representative charts and data sheets are ai)pend(;d to illustrate tho results obtained witlithe instnunent. In all tho charts two pressure scales arc used, one sufTiciently close to includetho… … Fig. 10.—Specimen indicator diagram in polar coordinates, pressures vs. crank-shaft angle. The diagram is shown by soUd Une, to which the right-handpressure scale applies. A reproduction of the loop near the pole is shown in thedotted curve, to which the 12J times magnified left-hand scale apphes.…
