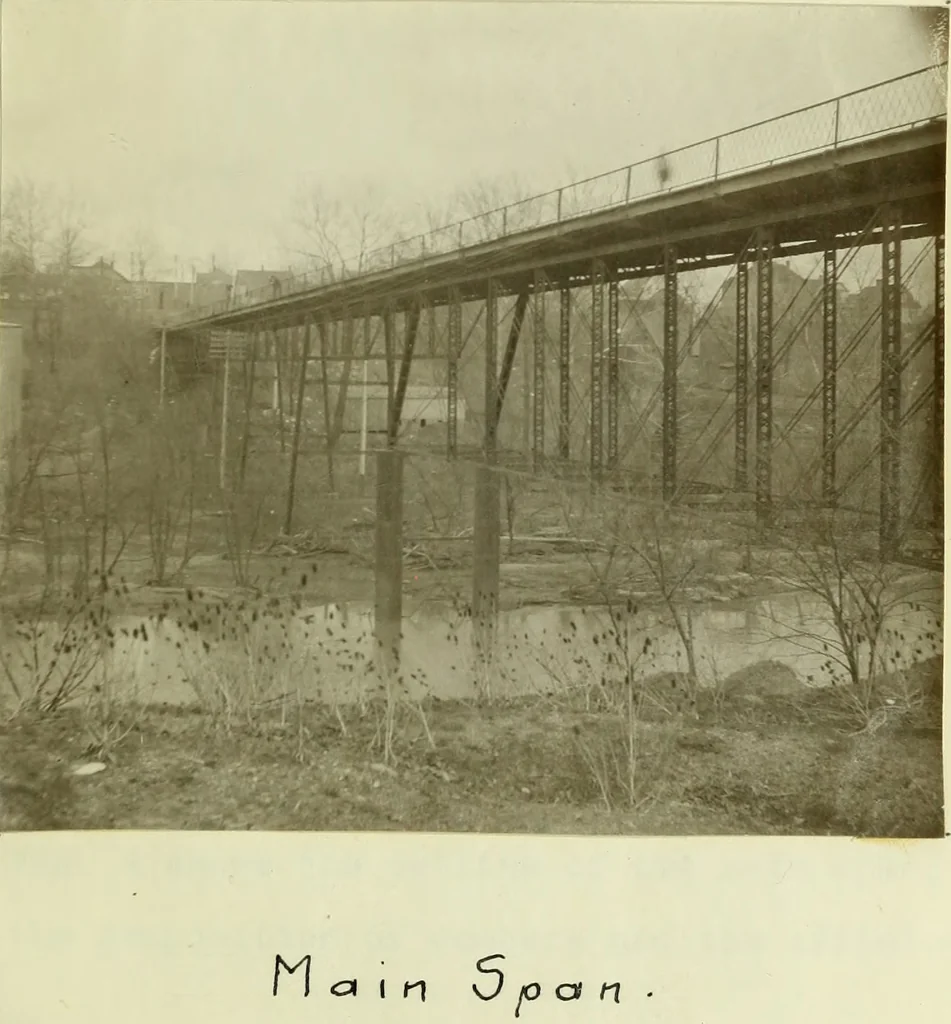

7. II. MAIN SPAN. The length of the main span is 170 feet, the depth25 feet and the panel length 17 feet 3 inches. The driveway is17 feet wide, and there is a 4 l/2-foot sidewalk on each side. The dead load per panel is 8000 lbs. The live load isaccording to Waddell s Specifications 86 lbs. per…
