A review of methods of bridge erection (1912)

Maver, David Blair · leaf 36

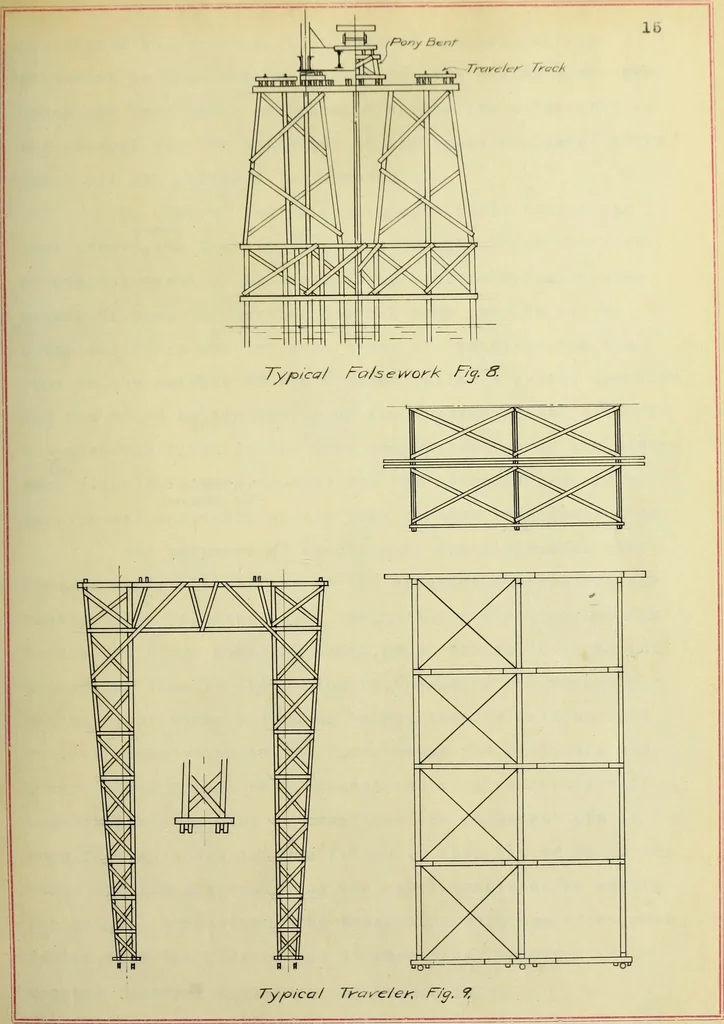

An illustration from A review of methods of bridge erection, 1912, leaf 36
16 the stream and ereoting that half of the bridge.Thisfalsework is then removed,except for the center piers,fromunder the halr trusi and rebuilt across the other half ofthe channel and the remainder Of the truss completed afterwhich all the falsework is removed. On most, of the larger bridges…

Bridges · Theses
