A review of methods of bridge erection (1912)

Maver, David Blair · leaf 58

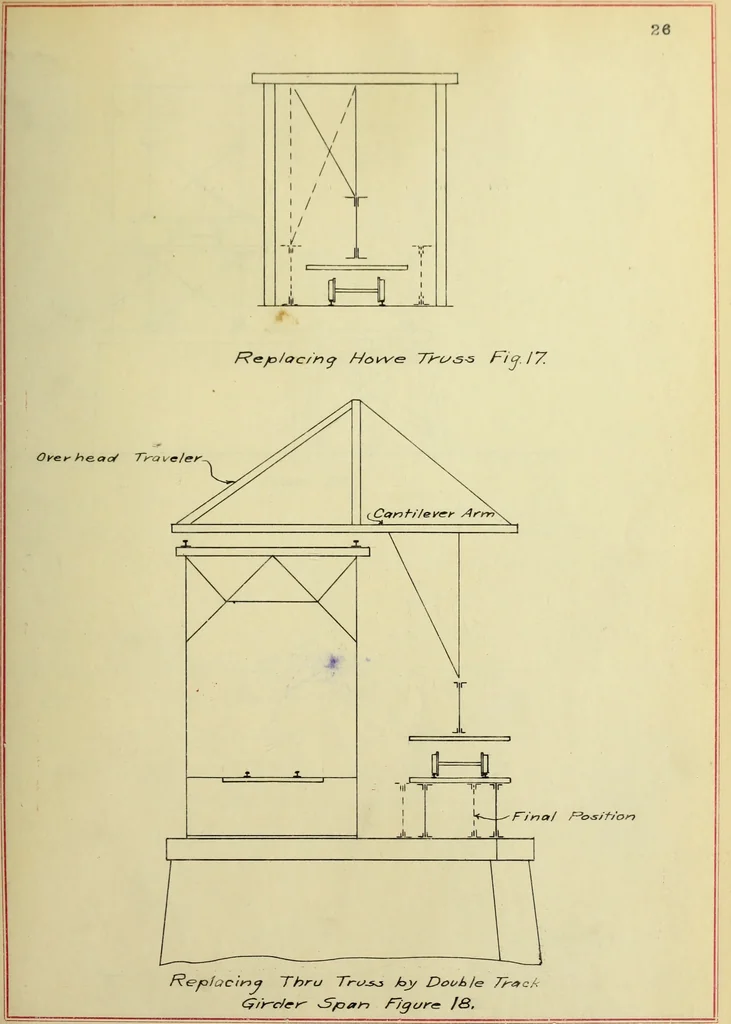

An illustration from A review of methods of bridge erection, 1912, leaf 58
her,while the cars wereremoved and the old span skidded transversely ontofalsework piers that were erected beside the main piers,and then lowered to position.The track work was con-nected up and the same operation carried on at the suc-ceeding spans.Time required for each span was aboutthree hours.…

Bridges · Theses

Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
