Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc. (1894)
Richey, H. G. (Harry Grant), b. 1868 · New York : W.T. Comstock · leaf 117

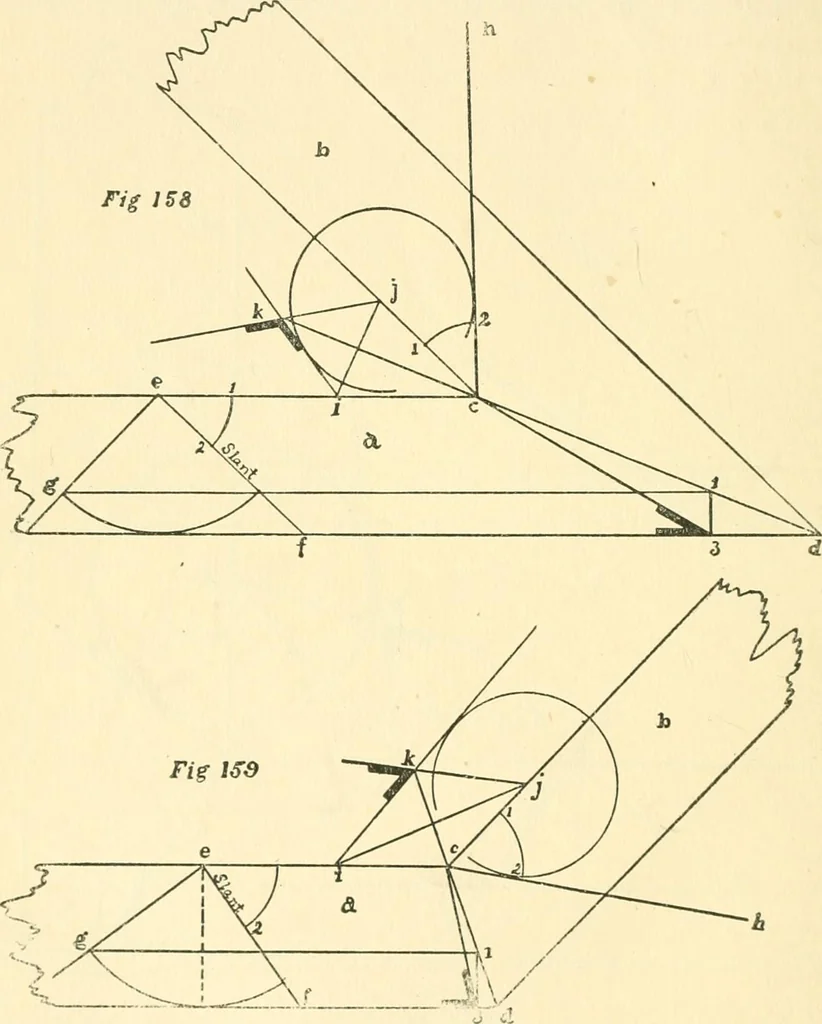

base line untilit strikes c d 2X \ \ then drop a perpendicular from i, asI 3 ; connect c 3, thus finding the bevel for the face of thework ; now make the angle i 2 c equal to i 2 ^ and drawc h through 2 ; now take any points on c I and c e oi equal I lO GUIDE AND ASSISTANT distance from c, as i j;… … thus orivine the bevel for the edo^e of the work. It will bewell to remember that the mitre for the face of the workis always taken from the line at right angles to the slant.138—To Get the Bevels for a Hopper of anyNumber of Sides (in this case 8).—Draw a section of FOR CARPENTERS AND…
Carpentry
Internet Archive · Boston Public Library · Public Domain Mark 1.0. Free to use for anything.
