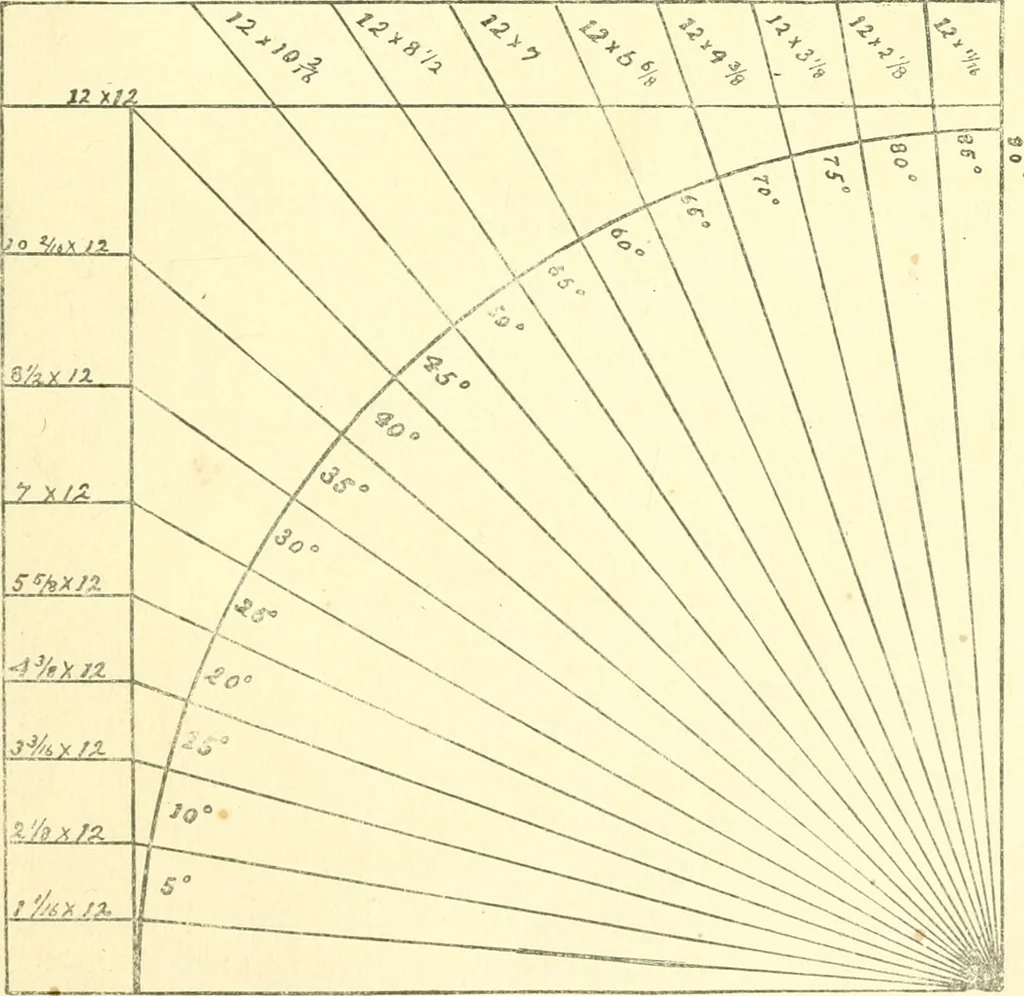

Fig 175 I20 GUIDE AND ASSISTANT 152—Diagram to Obtain Degrees on the Square.— For instance, if a pitch of 25° is required, use 5I on thetongue of the square and 12 on the blade; for 65° it isjust the reverse, or 12 on the tongue and 5^ on the blade.See Fig. 175. 153—To Mitre a Circle and Straight…
