Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc. (1894)
Richey, H. G. (Harry Grant), b. 1868 · New York : W.T. Comstock · leaf 23

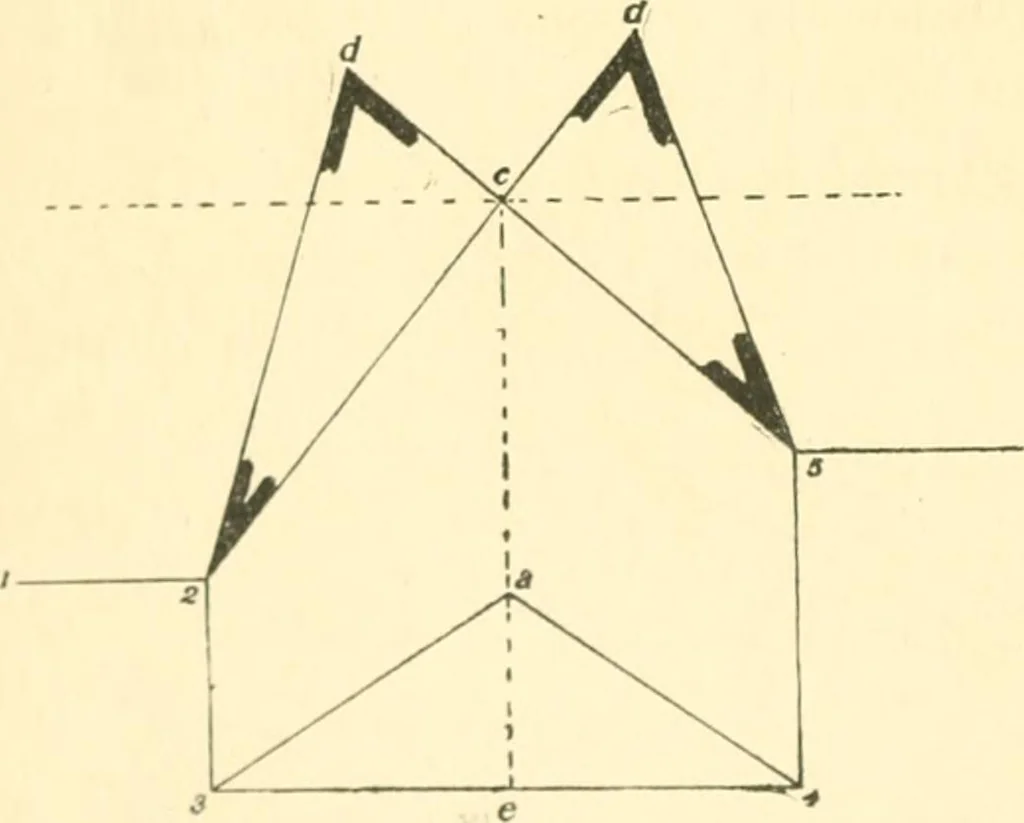

connect e andf. Make / £■ equalto / c; divide g dinto two equal parts,as h; connect h andb, and the bevel at his the bevel for thetop of the hip when the hip is not backed. 10—To get the Cuts and Lengths of Hip, Valleyand Cripple Rafters of Roofs of Different Pitches.— In Fig. ID, I, 2, 3,4, etc.,… … ^ig. w c at right angles to the seat of the valleys, making itequal to a c; then 2 d and 5 d. Show the lengths andcuts of the valleys. In Fig. 11 we divide the buildinginto two parts, as shown by the lines representing the FOR CARPENTERS AND MECHANICS. 17 plates of the building, i, 2, 3 and 4, 5,…
