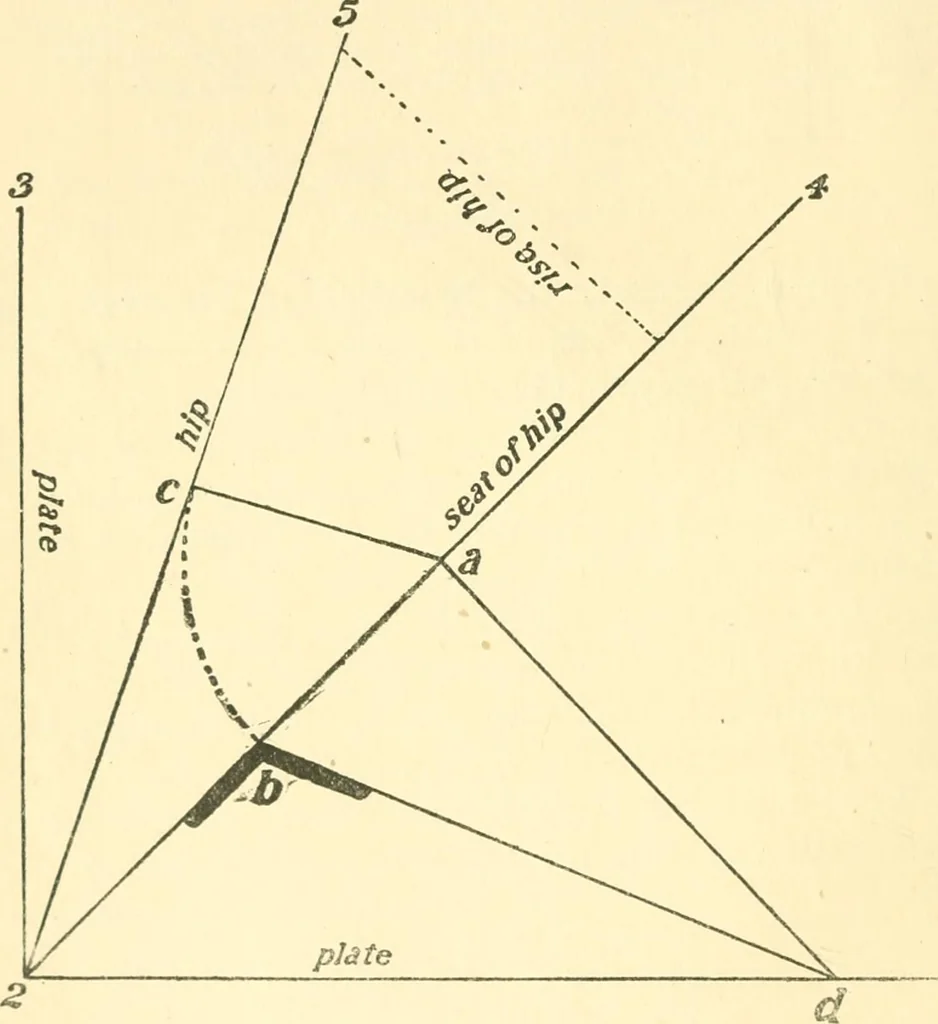

f^g.js 18- Fig. 16, to represent the plates of the building, then the 22 GUIDE AND ASSISTANT seat of the hip, as 2 4; then the hip, as 2 5. Take anypoint of the hip, as r. and draw a Hne at right angles to2 5 until it strikes the seat, 2 4; then continue the line at … — J Fig.je right angles to the seat, or 2 4, until it strikes the plate, aspoint d; then, %vith a as centre and a c as radius, strike an arcbisecting 2 4 at b; then draw line from b to point d on theplate ; then the bevel at b is the bevel for backing the hip.Fie 17 shows application. 10—To Find…
