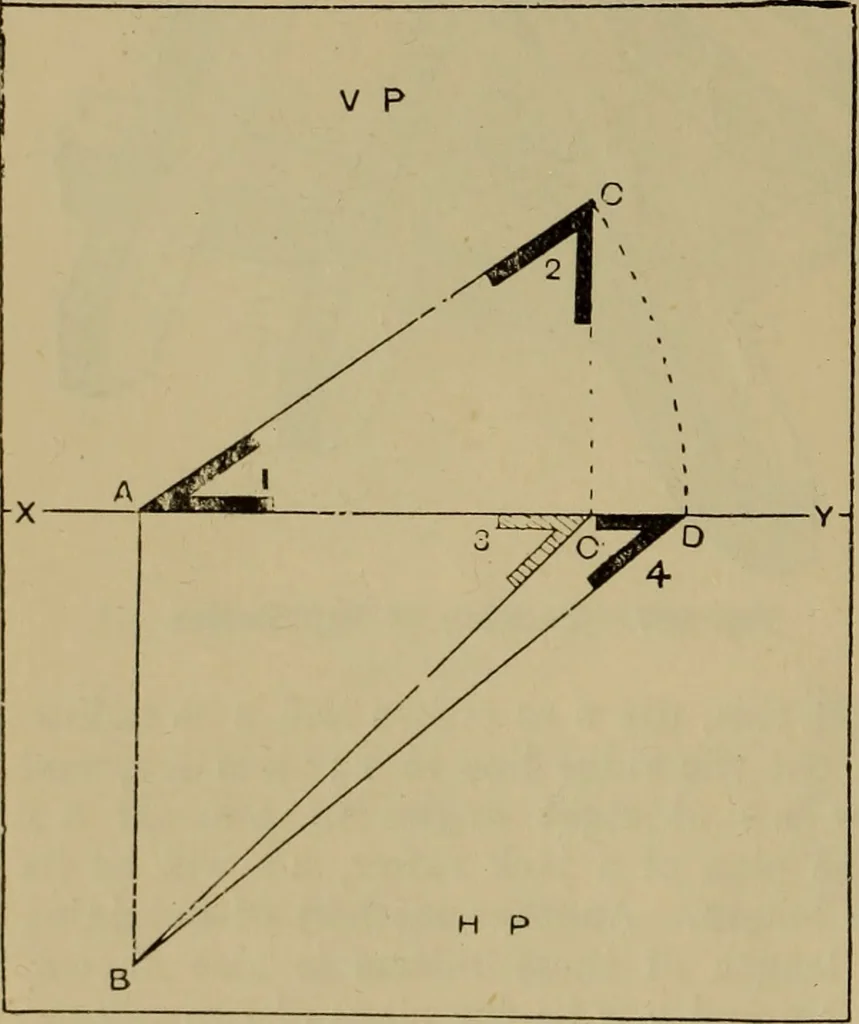

Fig. 640.—Bevel appliedto Hip. … Fig. 641.—Geometrical Method of obtainingBevels for Jack Rafters. prepare a direct bearing for the boarding orslating battens. The term backing of hipis sometimes used to denote the distancefrom the back of the hip to the edge of theplate, but the proper meaning of the term Fig. 642.—Diagram…
