An illustration from Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc., 1894, leaf 46

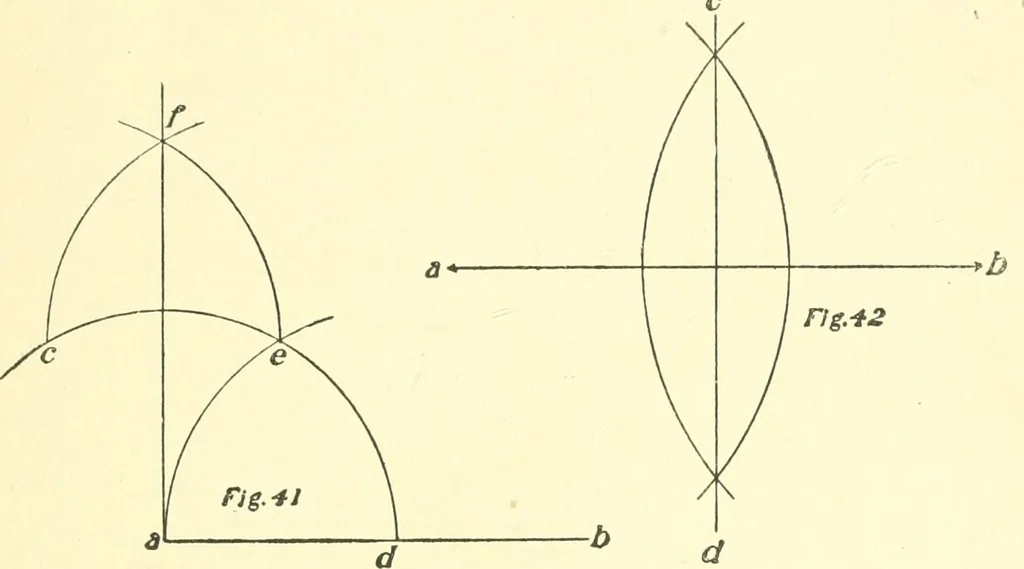

P^OR CARPENTERS AND MECHANICS. 39 then, with ^ <5 as centres and any radius of more thanhalf the length of a b, describe arcs intersecting-, asshown at c d; then draw a Hne through these intersec-tions. c … CHAPTER V. To Bisect a Right Angle—To Draw a Triangle ivheti the Length of the Sides are Given—To Draw a Triangle -when the Length of One Side is Givett—To Draw an Equi-lateral Triangle when the Perpetidicular is Given—To Dratv an Angle of60 or 30°—To Draw the Five Point Star—To Draw a Squa7-e…
