Perspective and geometrical drawing : adapted to the use of candidates for second and third-class teachers' certificates (1887)
McGuirl, Thos. H. (Thomas H.) · Toronto, Ont. : W. Briggs · leaf 36

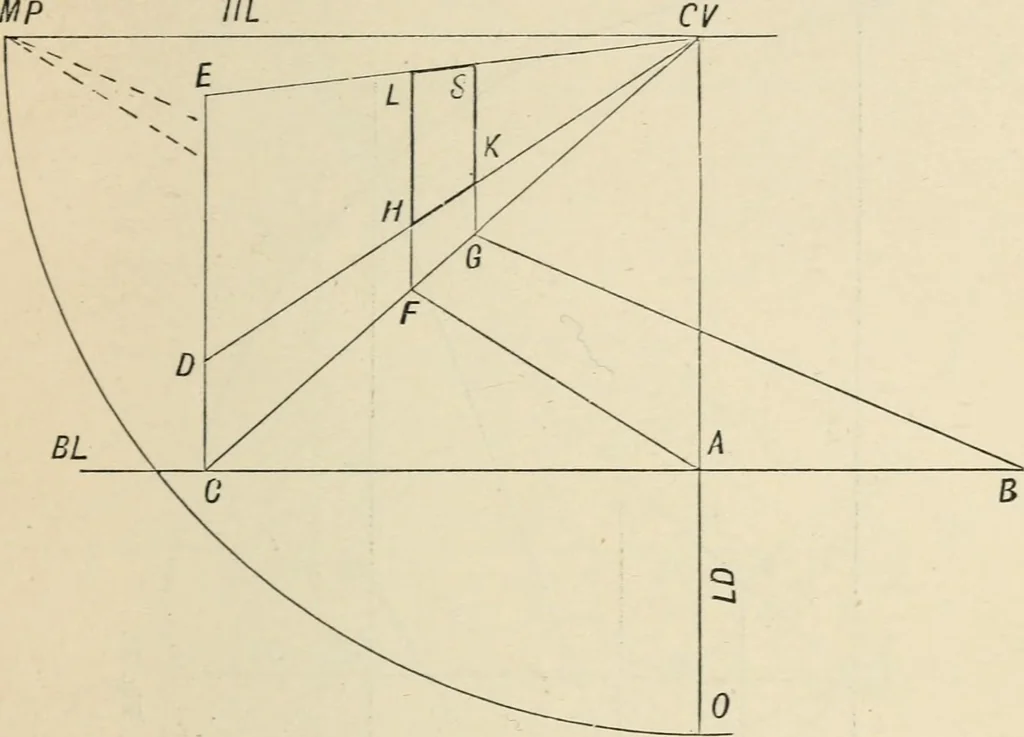

and J_ to G.P. and 1 above it.Other specifications as in last example. Construct figure as before. Take C H (6) to left of A,take B 1 (4) to right of A, erect CE _L to AC at C and \\n(5) in height, and mark off D \ (V) above C; join E CV.D.C.V., C C.Y., A MP and B MP. Through F, G draw FLand GS… … Fig. 17. Example 3.— Draw a square 4 side directly in front, paral-lel to G.P. and 3 above it, and to P.P. and 3 within it. Same specifications as before. Construct figure and find M as before. From A measureoff V both ways to B and C (EC = 4); erect perpendicularsBF and CG, each f (3); join FG, B…
Geometrical drawing · Perspective
