Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc. (1894)

Richey, H. G. (Harry Grant), b. 1868 · New York : W.T. Comstock · leaf 49

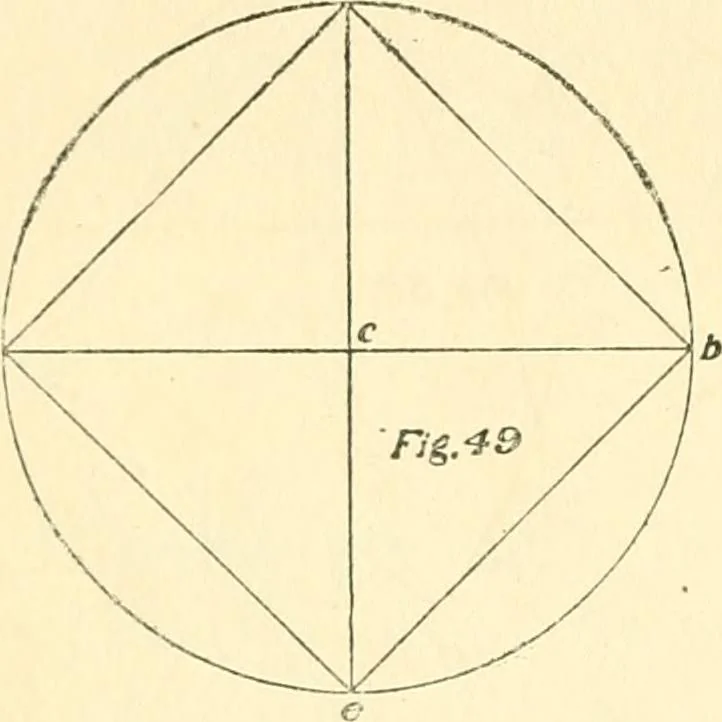

An illustration from Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc., 1894, leaf 49
e a g through e. 44—To Draw an Angle of 60° or 30°.—Draw theline a b, Fig. 47, and with any point on a b, as c, for cen- 42 GUIDE AND ASSISTANT tre and c a as radius, draw the arc a \ io 2 d. With a ascentre and same radius find point i; draw Une from athrou^^h I; \ a c =^ 60°; with d as centre and…
