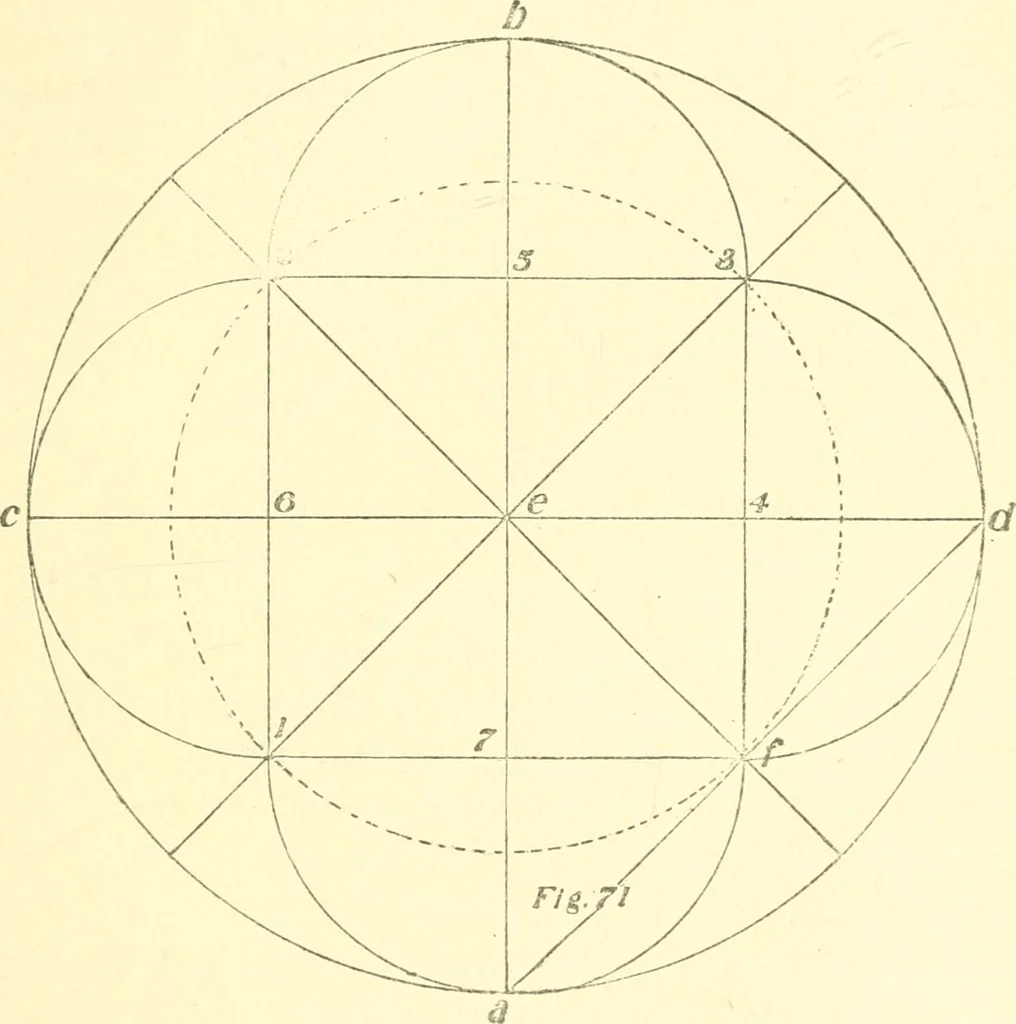

ngent to the Given Circle andtheir Diameters Forming a Regular Polygon.—Draw the two diameters a b and c d dX right angles to each FOR CARPENTERS AND MECHANICS. 55 other, Fig. 71; then divide the circle into twice as manyparts as there are semi-circles required, commencing tospace from a; then draw… … ing points 4, 5, 6, 7, which are the centres for the semi-circles, and from any of these points to the given circle isthe radius, as 4 d. 68—To Divide a Circle into Concentric RingsHaving Equal Areas.—Divide the radius, a c, Fig. 72,into as many parts as areas required, as i, 2, 3, etc. With^ ^ as…
