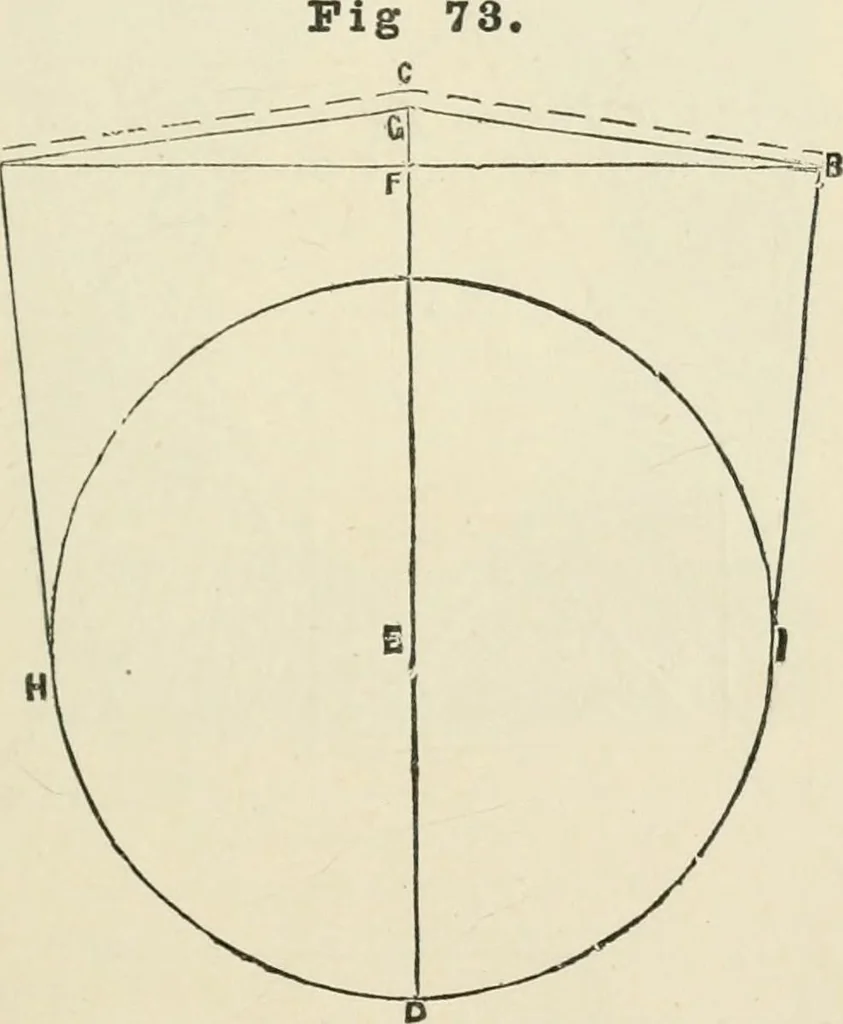

* 3 inh\ hfeint «^ FOR DESCRIBING PATTERNS. 15 BOILER COVER. To describe an Oval Boiler Cover. … Eie;t the line DC; make FD equal to oue-half the lengta ofthe boiler bottom before the edge is turned; describe the circleIIDI one-eight of an inch larger in diameter than the breadth ofthe bottom; let FG be three-eights of an inch; then apply thecorner of the square on the line AB, allowing the…
