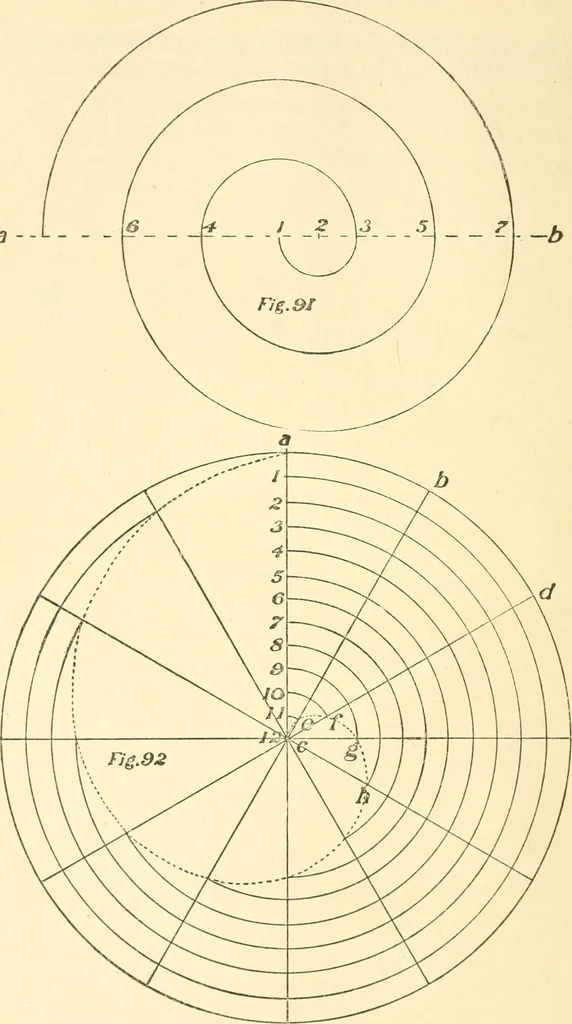

a --^- - - … FOR CARPENTERS AND MECHANICS. 67 an indefinite line, as a b, Fig. 91; then take any point ascentre and the radius of the small semi-circle, as i 2; with2 as centre draw the semi-circle, i 3; then, with i as centreand I 3 as radius, draw the semi-circle 3 4; then, with 2 ascentre and 4 2 as radius,…
