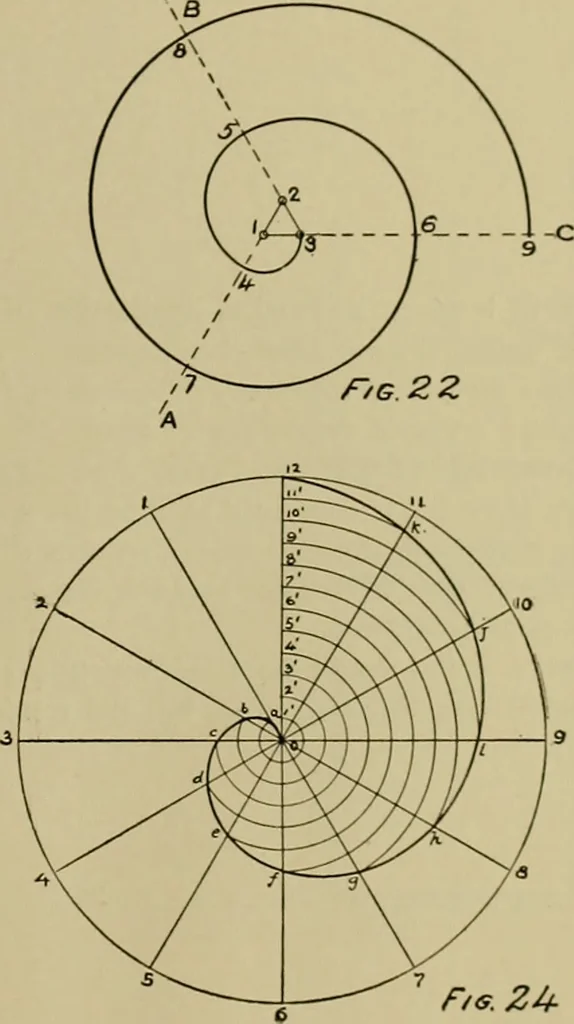

/3IB F,c. 23 … Fts. Z^ 60 70 A MANUAL OF MECHANICAL DRAWING. In Plate i6 is given a practical application of theapproximate spiral drawn from four centres. Thisdrawing shows the case of a blower. The centres fromwhich the outer curve is drawn are 4 apart, 2 eachside of the centre line of the blower case. The…
