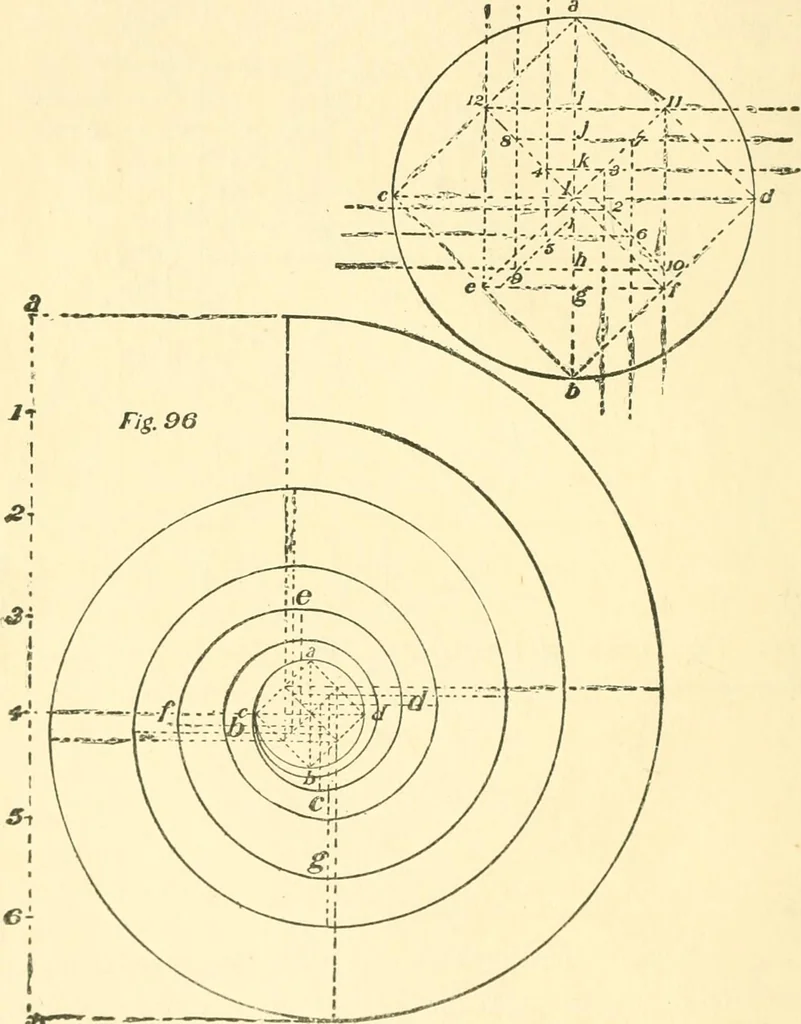

draw arc c d \.o meet a line through 4 3, etc. The centresto draw the inner curve are shown by the dots on the di-agonals, which is the centre of the space between theangles of the squares. 72 GUIDE AND ASSISTANT 91—To Draw a Parabola when the Abscissa a hand the Ordinate a c are Given.—Draw the… … d to a b; draw line i until it intersects i b; draw line 2 until itintersects 2 b, etc.; these intersections are points on theline of the curve. 92—To Draw an Hyperbola when the Diametera. b, the Abscissa b c and the Double Ordinate d e FOR CARPENTERS AND MECHANICS. 1Z are Given.—Complete the…
