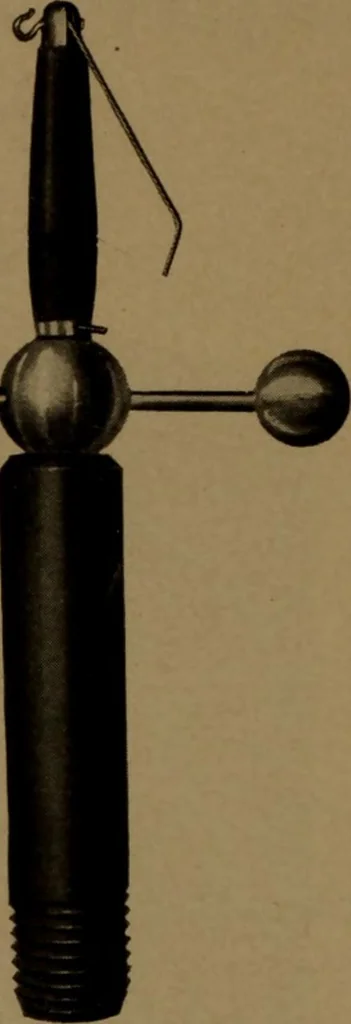

Type B. THE style of interrupter illustrated here is similar in generalconstruction to the form shown on page 22, with two im-portant changes. The outside wood case is omitted and thereis no water cooling attachment. The last mentioned feature is notrequired under ordinary conditions, but it is… … Figure 14. Roentgen Series Spark Gap. THE well known phenomena of the <( inverse discharge of theinduction coil, makes it advisable to use some form of resist-ance in series with the terminal of the induction coil and the X-Raytube, to prevent the inverse discharge from going through the…
