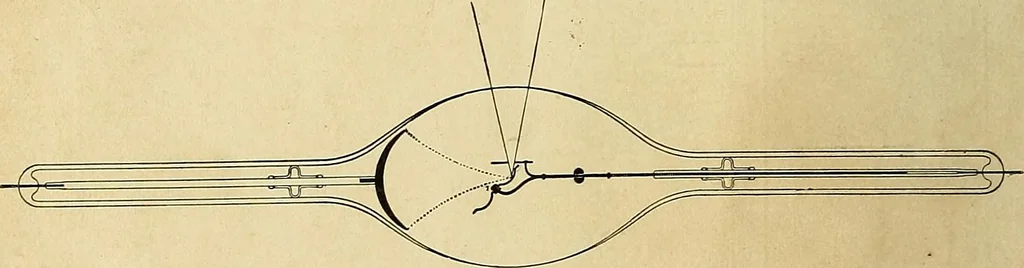

Fig. 24. A. W. L. rotary target tube with movable target. (Rollins.)This cut shows a curved target supported by a strong stem which can be slid in or out by theaction of a sliding weight attached to it (the dark mass on the stem represents the weight), and thusthe distance between the target and… … Fig. 25. A. W. L. rotary target tube with movable target and internal diaphragm. (Rollins.)This cut shows a similar adjustable target with a diaphragm, supported on the same stein,above it. The cone of rays, and the widening of this cone as its distance from the target increases, isrepresented by…
