Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 101

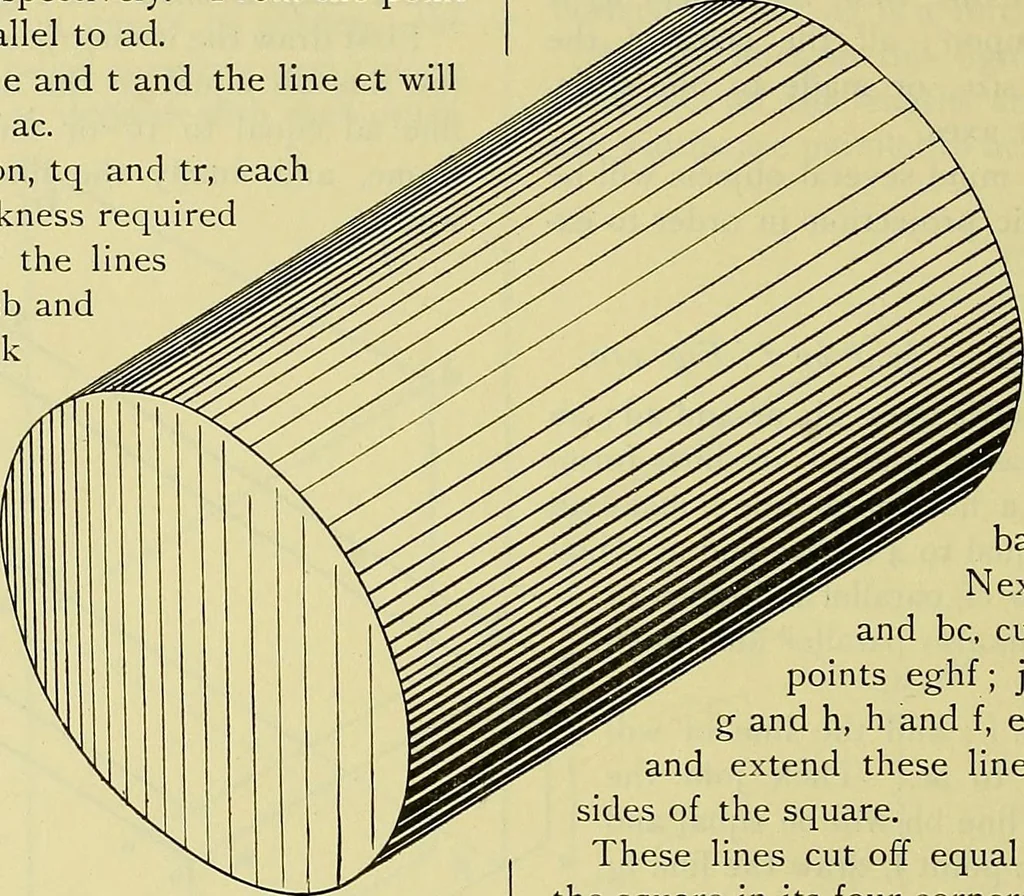

parallel to bf.The two lines gr andqk intersect at s ; fromthis point s, draw avertical linesu, paralleland equal to ab. From u draw a lineparallel to ad in thedirection of ac andcutting this latter line ;also draw from u a lineparallel to ac in thedirection of mp andcutting said line. Note.—For… … Fig. 212. To draw a right cylinder in a horizontal position,as shown in Fig. 212. Draw a square abed,Fig. 213, with sides ofexactly the samelength as the diameterof a circle whose sur-face is to be the baseof the required cylin-der. Within thissquare draw a circleefgh, tangent to thesquare and its…
Mechanical drawing · Machine design
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
