Sullivan, Christine [Gordon]. [from old catalog] · New York, Cincinnati [etc.] American book company · leaf 45

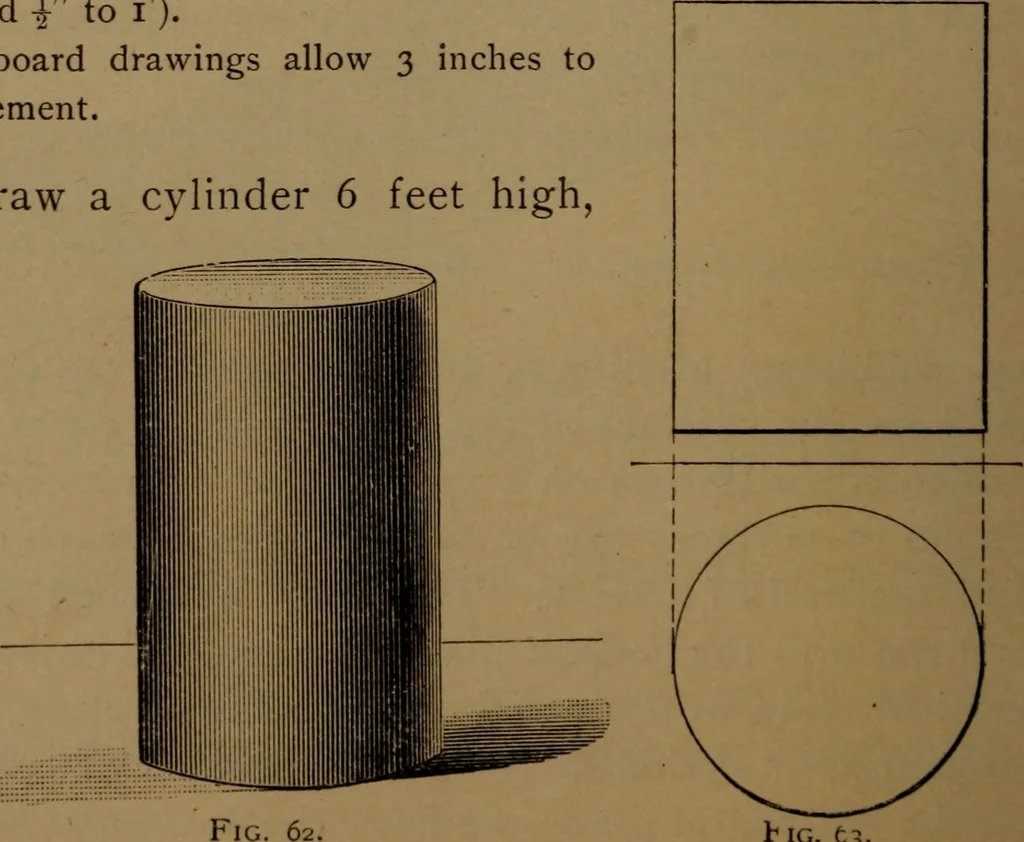

Fig. 6i. tions (scales, i to i, and ■^ to i). Note 2. — In blackboard drawings allow 3 inches toeach inch actual measurement. Exercise 3. — Draw a cylinder 6 feet high,diameter of basebeing 4 feet (Fig.62) ; also planand elevation(Fig. 63). ExerciseI. — Draw planand elevationof a square(Fig. 60).… … FiG. 6: tlG. t3. GEOMETRIC SOLIDS, —PLANS AND ELEVATIONS. 41 Exercise 4. — Draw a cone 4 feet high, diameter of base 4 feet(Fig. 64) ; also plan and elevation (Fig. 65).
Mechanical drawing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
