Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 107

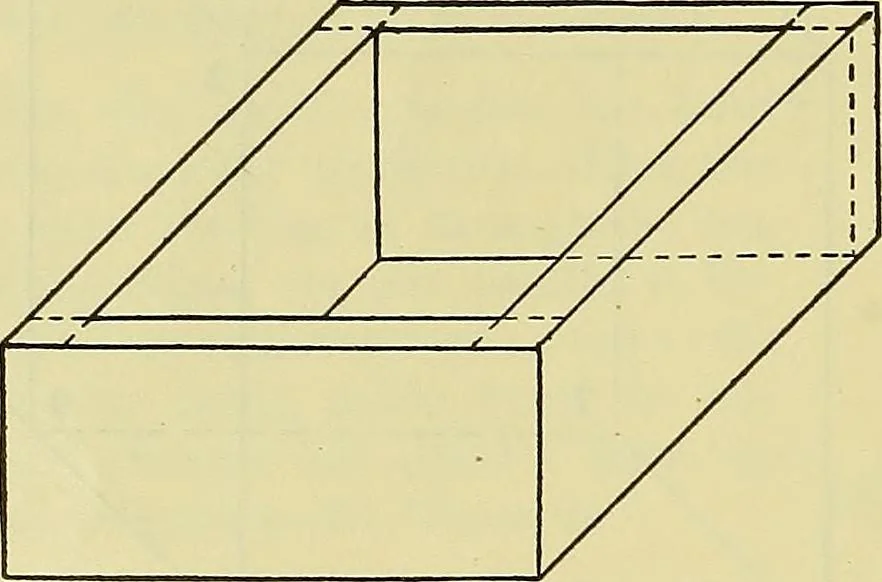

nding measurements. It is not essential which side of the object shouldbe considered its length and which side its thickness. 122 ROGERS DRAWING AND DESIGN. To draw a cube in cabinet projection, as^hown in Fig. 221. Suppose each side of the cube to be 3 long. Draw the three axes: ab=horizontal… … Fig. 222. through point i parallel to the vertical axis bd anda horizontal line drawn through point 2 parallel tothe horizontal axis ab will intersect at point 3 andthus complete one face of the cube b-2-3-1. Now, through the point 4 draw a vertical lineparallel to bd and through point 2 draw a…
Mechanical drawing · Machine design
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
