Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 117

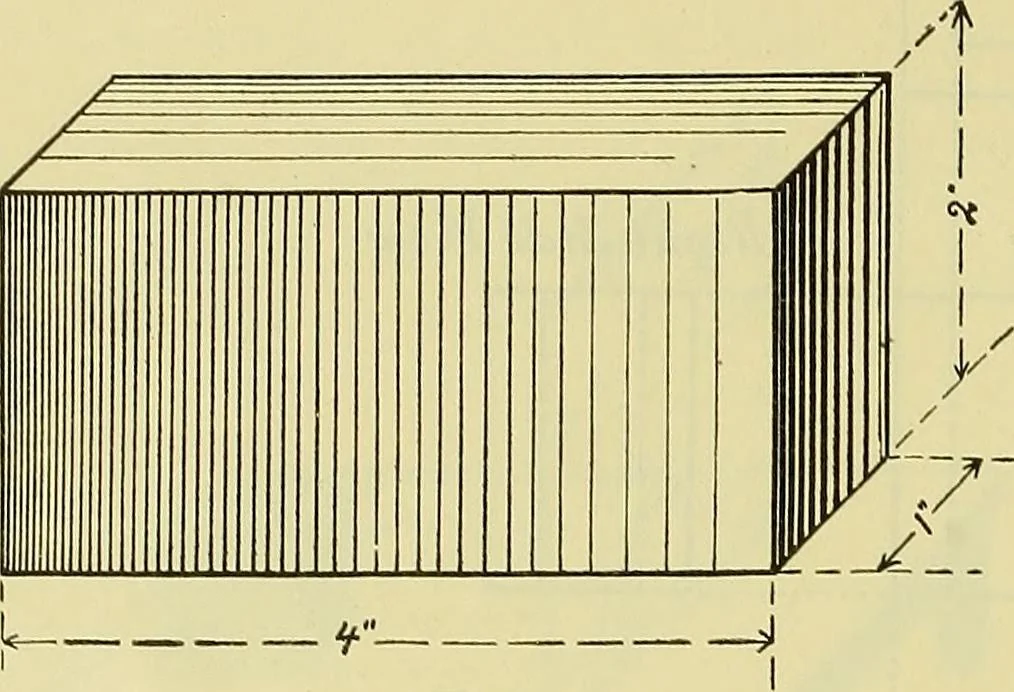

awing the views of its limiting points, lines andsurfaces, according to the principles of orthographic projection. ROGERS DRAWING AND DESIGN. 131 Tof3 Vi ew Lefl SideVitu/ t I Front View I • HigJii Side Vteu JBoitom View Fig. 236. 133 ROGERS DRAWING AND DESIGN. Draw the front view, left side view… … FlO. 237. It is important to remember that dimension linesmust be drawn parallel to the distances, the size ofwhich they are intended to show. The dimensionlines terminate in arrow heads drawn with an ordi-nary writing pen. If a dimension line is carriedoutside of a view, short auxiliary dotted…
Mechanical drawing · Machine design
