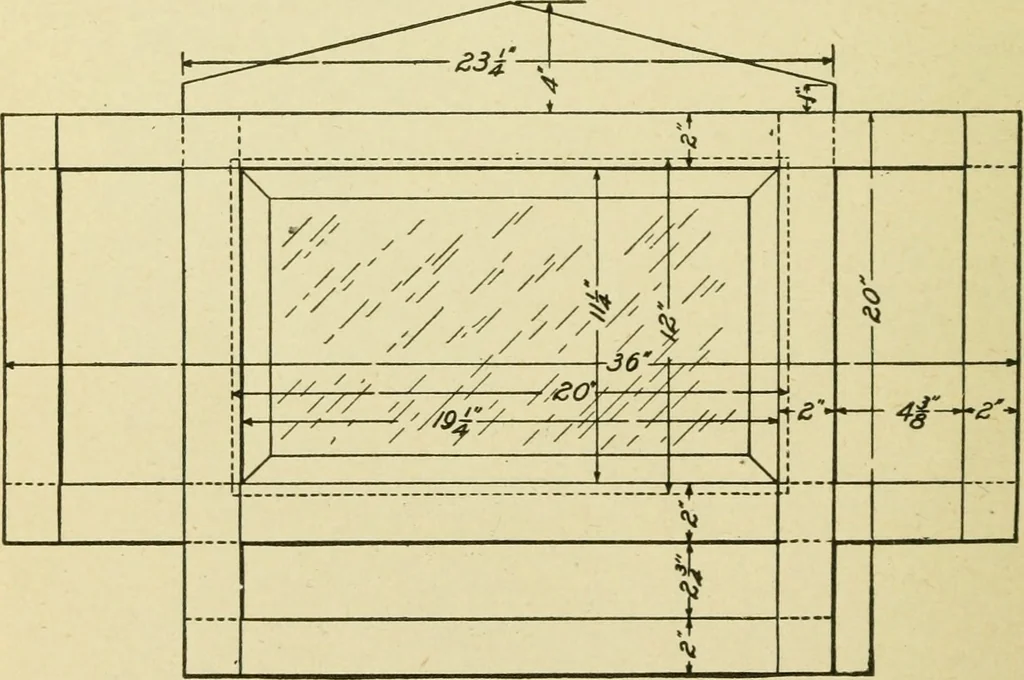

Fig. 240 ELEMENTARY CABINETWORK with an X the material to be cut out, being carefulto have the joints as shown in the drawing (Fig. 236).Remember that if you take pains to draw all of yourlines according to directions, the joints will be easilyworked and the pieces go together readily. Such… … Fig. 236 Hat rack Rabbet. The rabbet for the mirror may be linedwith a gauge and cut out with a chisel. To dothis, first score the piece, as shown in Fig. 230. After all the gains have been cut, try the partstogether and if you have a sufficient number ofclamps, glue and clamp all at once; if not,…
