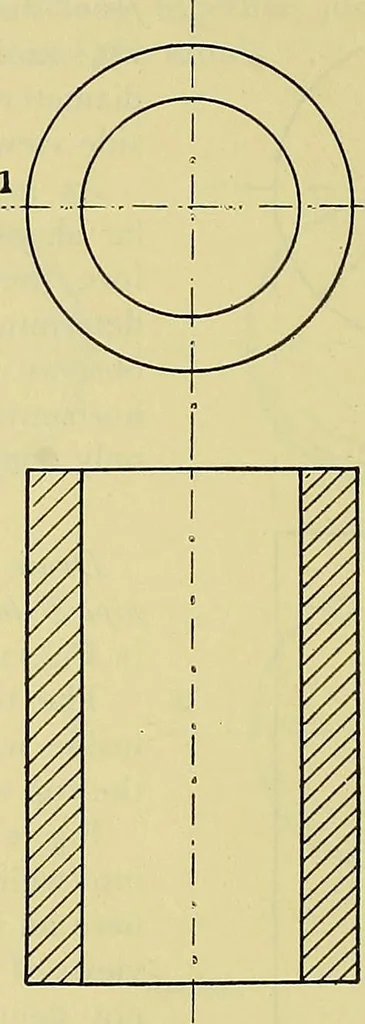

Fio. 2r,i. shown in Fig. 251 ; a front view of such a pipe cutin half is shown in Fig. 252 ; the top view is that ofa whole pipe. The line 1-2 shows the manner inwhich the cylinder is supposed to be cut, and iscalled the line or plane of section. The front view in Fig. 252 we call the sectionview… … cSection on /-%. Fio. 252. ROGERS DRAWING AND DESIGN. 143
