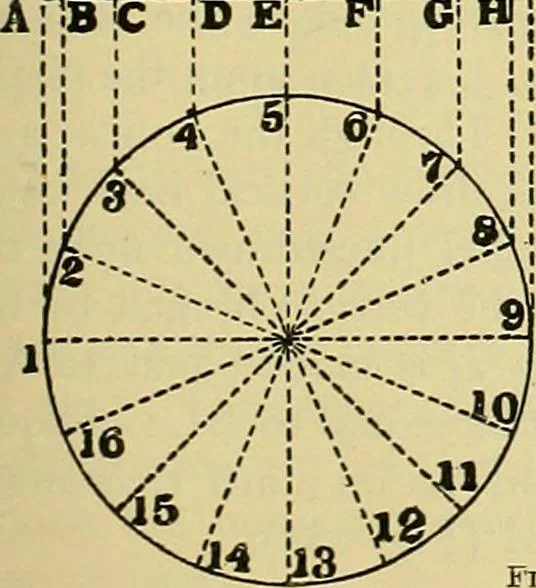

d EM each equal to em in Fig. 285. Thus one-half, MLKSKLM of the opening is obtained. The rectangular piece, VWTU, with the twoopenings. MM and NN, is the required pattern ofthe larger cylinder. To draiu the development of a four-part elbow. A four-part elbow is a pipe joint made up of fourparts,… … Fig. 288. two larger parts, AKSI and YZfd are equal. Thesame is true of the two remaining smaller parts,KXTS and XYZT. To lay out these parts in the elevation a rightangle abc is drawn, the sides of which intersect atright angles, the two largest branches of the joint.It is evident that the point b…
