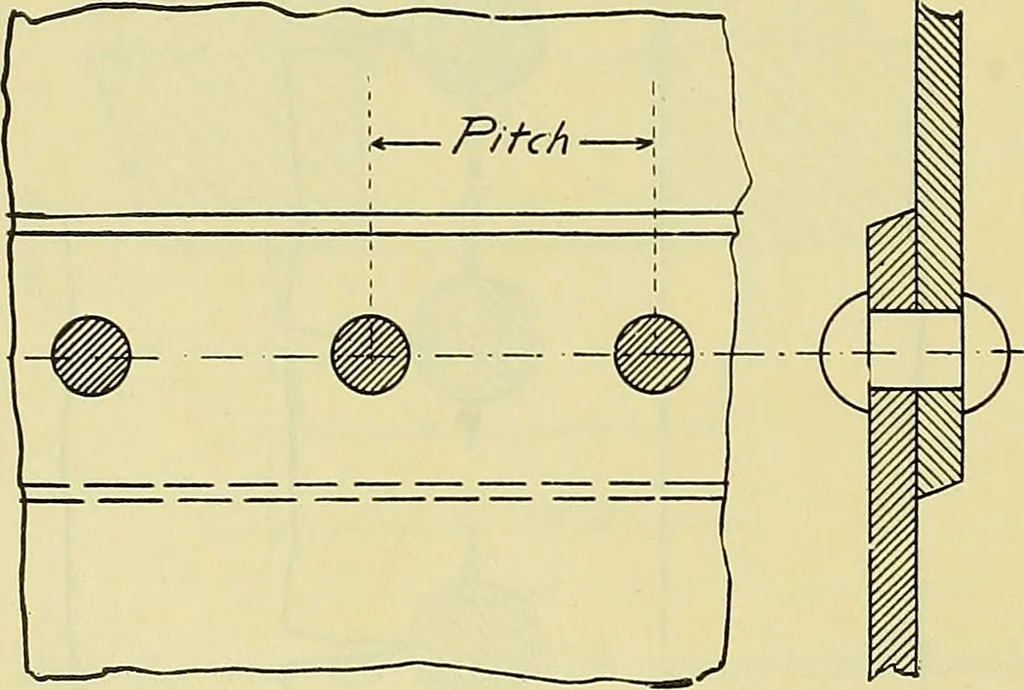

Fig. 3fi«. … Fig. 3H7 rivet holes and the edge of the plate, as shown inFig. 365 ; by crushing of the plate or by crushing ofthe rivet, and by the breaking of the rivet throughshearing, as indicated by Fig. 366. By the pitch of rivets is meant the distance be-tween the centers of two adjoining rivets, in…
