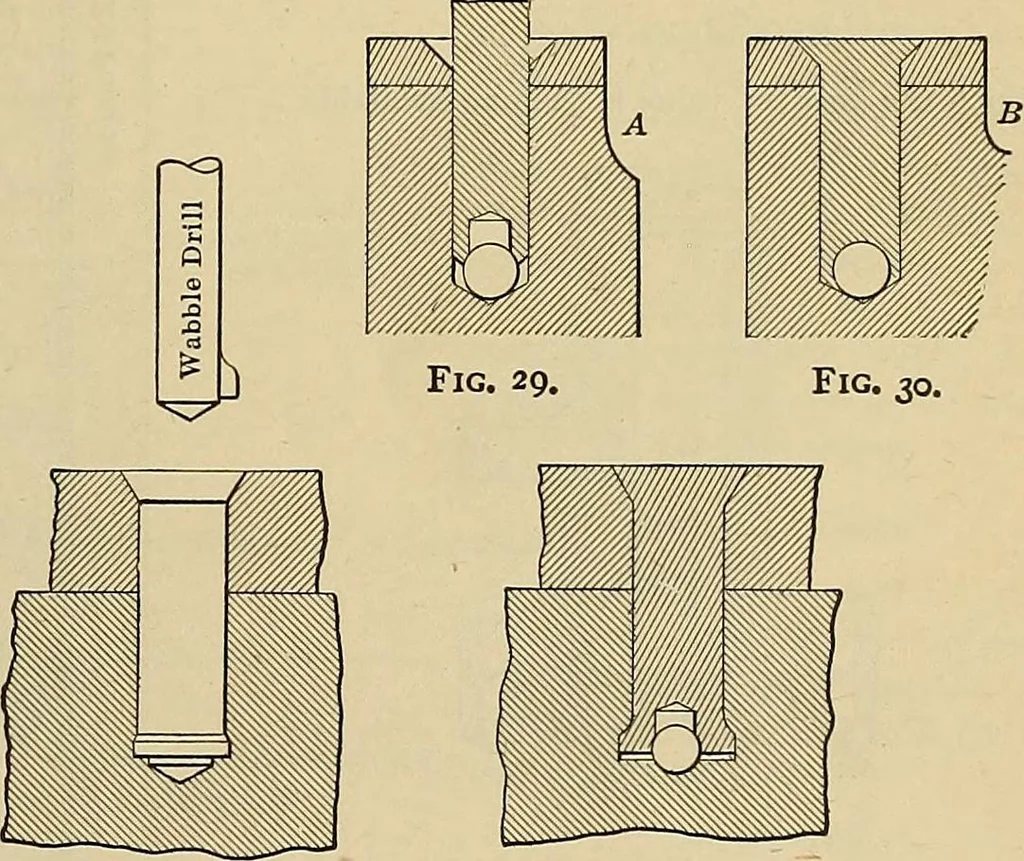

e diameter of the stud for smallsizes and i§ times for large sizes, while the difference in diameterbetween the ball and the hole in the stud should be about ^ in. Tests have shown that j^- and i-in. studs are about 20 per cent,stronger than bolts of the same diameter, and the average grip ofa… … Fig. 31. Fig. 32. Figs. 29 to 32.—The ball expansion drive stud. I in. Table 3 gives the dimensions for small sizes. While the ex-perience of the Link Belt Co. has shown complete security of the con-struction, the larger sizes may, if desired, be given a security whichno one can question by the…
