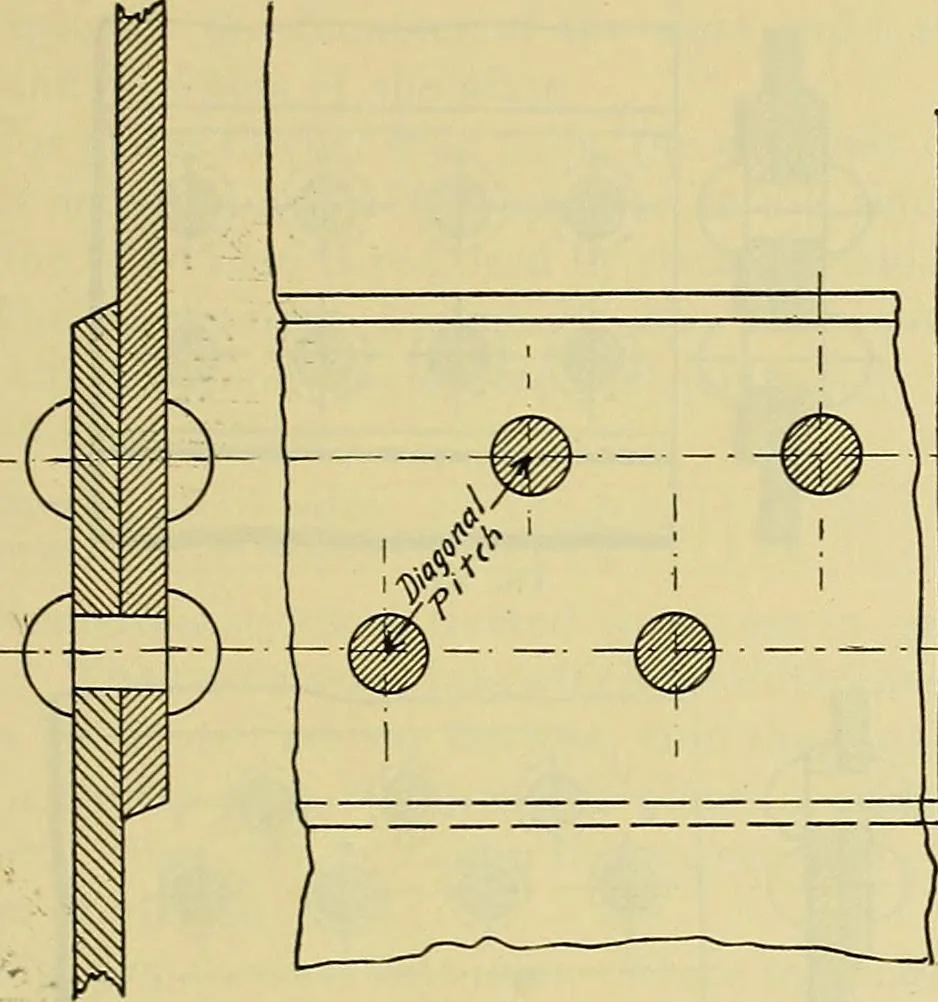

Fig. 368. ROGERS DRAWING AND DESIGN. 247 … The distance between the centers of two adjoin-ing rivets, both in the same diagonal row is calledthe diagonal pitch, Fig. 369. The strength of a riveted joint depends uponthe arrangement of the rivets and upon their pro-portions. Since a rivet may part either by shearing or bycrushing, it is…
