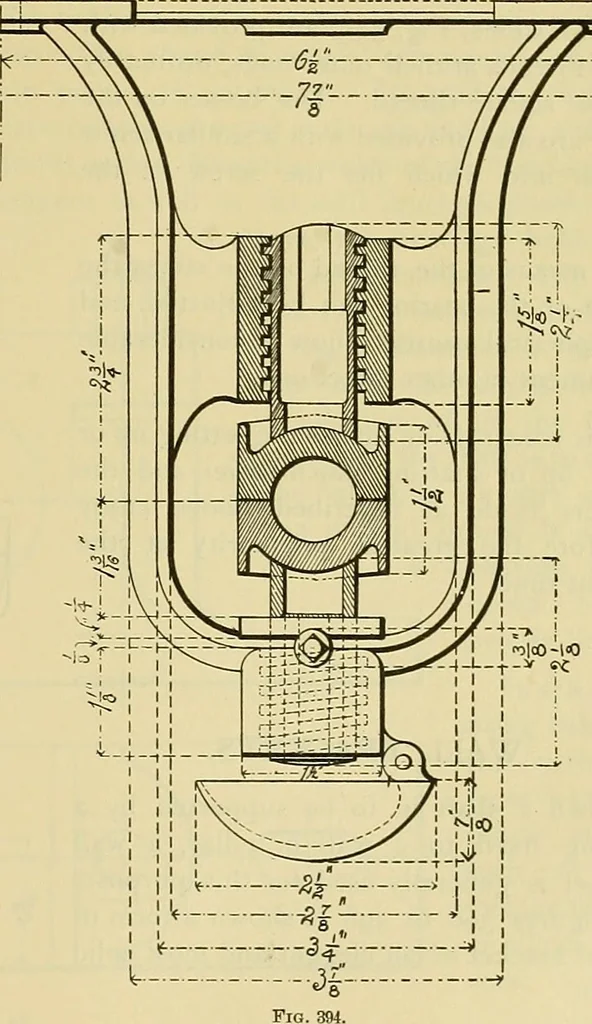

Fio. 395. Fig. 393. … 262 ROGERS DRAWING AND DESIGN. These stems, Fig, 395, are provided withscrew threads at their outer ends, ordinarilyshallow square thread. The bosses on theframe are also provided with a similar screwthread, into which fits the screw of thestem. By means of the thread on the stems theheight of the…
