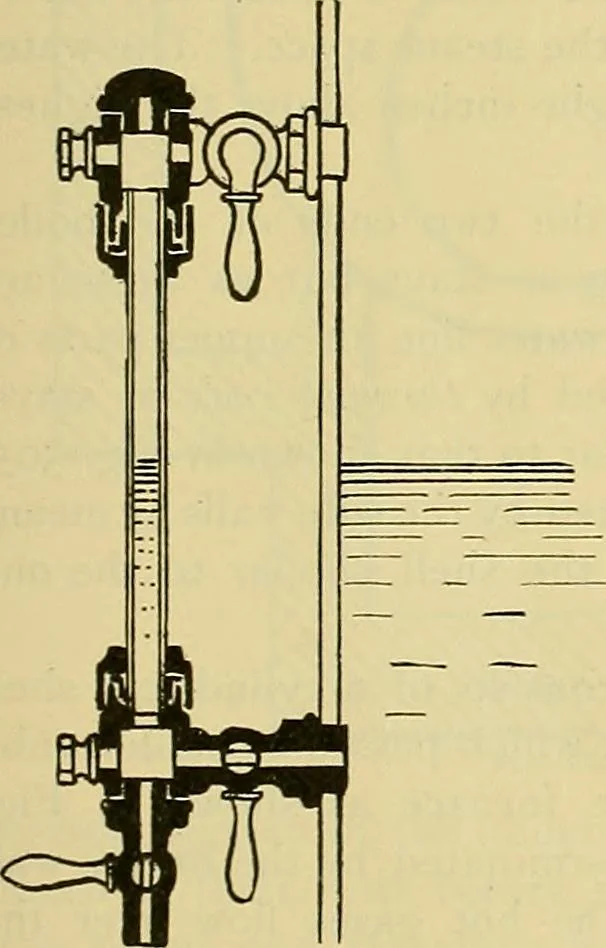

in Fig. 495. The boiler must also be provided with a blozu-offpipe, through which the water may be discharged ;in Fig. 492 the feed pipe, as well as the blow-offmay be seen at the rear of the boiler. A nianhole,¥\g. ^g/, is constructed in the front heador on top of the boiler, to allow a person to…
