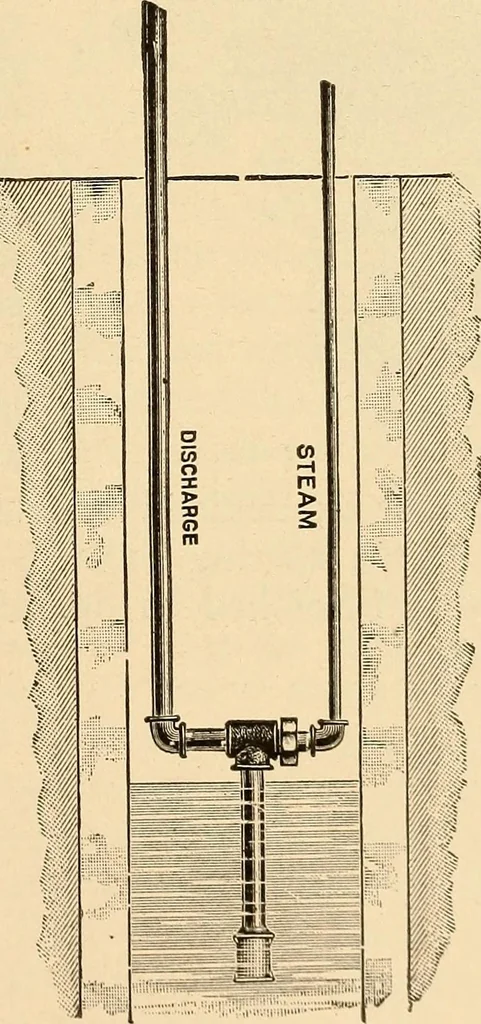

uldbe placed for high elevations. For lifting only theejector can be placed at the boiler level. Where it is required to lift water ten feet or overit is advisable to place a foot-valve on the lowerend of the suction pipe. All ejectors, if properly constructed, will lift waterto a height of… … no. 2. Ejector, showing connections forElevating. ner water can be lifted about fifty feel with seventy-five pounds steam pressure, and about seventy feetwith one hundred pounds steam pressure. 176 LOCOMOTIVE APPLIANCES. Fig. 3 is a general view of the Hancock ejector. The steam, suction and…
