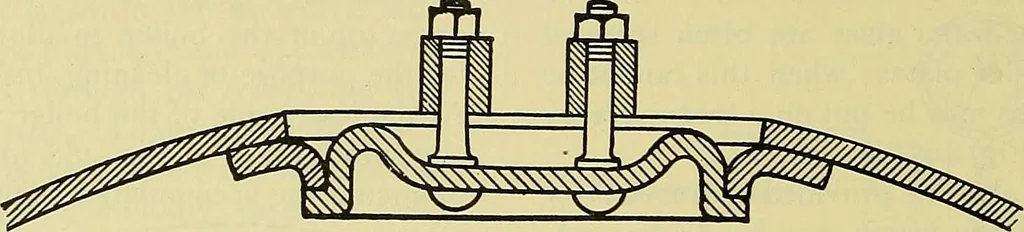

FIQ.4W. w/yyyy/yyyyy. 340 ROGERS DRAWING AND DESIGN. a « ii_i … Fig. 498. Plain cylindrical, or plain shell boilers, may bemade from 30 to 40 inches in diameter and from 20to 40 feet lono^; they are not considered economicalon account of their small heating surface. The jiue boiler. Figs. 499 and 500, differs fromthe plain shell boiler in having one or more…
